Norsat International Inc.

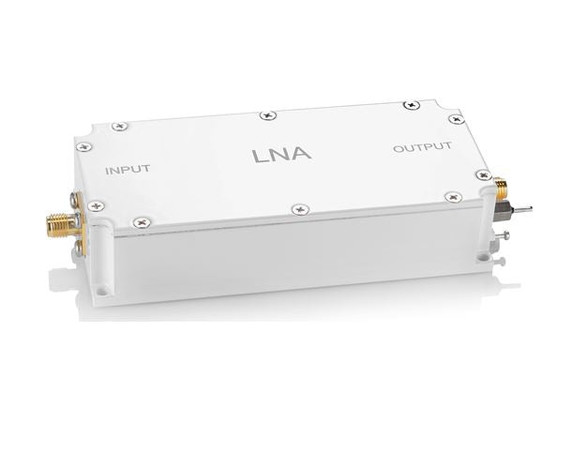

Norsat LNA-LNN Single-Band L-Band LNA custom - DEMO
Product Code:
LNA-LNN
Condition:
New
Availability:
1 pcs
Weight:
0.25 KGS
Width:
4.50
(cm)
Height:
10.00
(cm)
Depth:
2.26
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | L-Band |
| Input Frequency Band 1 | 1150 - 1650 MHz |
| Noise Figure | 40K max. |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 50 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness | 2 dB p-p |
| Gain Ripple (At Per 36Mhz) | 1 dB p-p |
| Input VSWR | 2.0 : 1 |
| Output P1db | + 10 dBm |
| Output VSWR | 2.0 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 300mA |
| Input Power | Pin through connector |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | N - 50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 65 |
| Temperature Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 100.0 mm |
| Product Length | 22.6 mm |
| Product Weight | 0.25 kg |
| Product Width | 45 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 190 mm x 115 mm x 75 mm |
| Unit Package Height | 75 mm |
| Unit Package Length | 190 mm |
| Unit Package Weight | 0.25 kg |
| Unit Package Width | 115 mm |
| Warranty | 1 year |
