Norsat’s LNA’s provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNAs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNAs. 9000 Series.
KEY SPECIFICATIONS | |
Product Family | 9000 Series |
Band | Ka-Band |
Noise Figure | 1.5 dB |
Input Frequency - Band 1 | Ka-Band: 20.20 - 21.20 GHz |
RF SPECIFICATIONS | |
Conversion Gain | 50 dBm |
Gain Variation over operating band | 4.0 dB p-p |
Input VSWR | 2.2 : 1 |
Output VSWR | 2.2 : 1 |
Output P1dB compression point | 8 dBm |
ELECTRICAL SPECIFICATIONS | |
Power Requirements | 15 - 24 V |
Current Drain | 300 mA |
INTERFACE SPECIFICATIONS | |
RF Input Connector | WR-42 waveguide grooved |

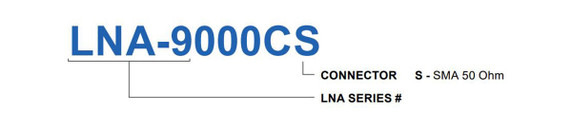

RF Output Connector | S - SMA |
M & C SPECIFICATIONS | |
Input Power Port | DC Power via MS3112E10-6P |
ENVIRONMENTAL SPECIFICATIONS | |
Temperature - Operational | -40 to +60°C |
Temperature - Storage | -40 to +80°C |
Humidity | 0 - 95% |
PHYSICAL SPECIFICATIONS | |
Dimensions (L x W x H) | 116 x 49 x 40 mm |
Weight | 400 g |
Norsat’s LNA’s provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNAs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNAs. 9000 Series.
KEY SPECIFICATIONS | |
Product Family | 9000 Series |
Band | Ka-Band |
Noise Figure | 1.5 dB |
Input Frequency - Band 1 | Ka-Band: 20.20 - 21.20 GHz |
RF SPECIFICATIONS | |
Conversion Gain | 50 dBm |
Gain Variation over operating band | 4.0 dB p-p |
Input VSWR | 2.2 : 1 |
Output VSWR | 2.2 : 1 |
Output P1dB compression point | 8 dBm |
ELECTRICAL SPECIFICATIONS | |
Power Requirements | 15 - 24 V |
Current Drain | 300 mA |
INTERFACE SPECIFICATIONS | |
RF Input Connector | WR-42 waveguide grooved |
RF Output Connector | S - SMA |
M & C SPECIFICATIONS | |
Input Power Port | DC Power via MS3112E10-6P |
ENVIRONMENTAL SPECIFICATIONS | |
Temperature - Operational | -40 to +60°C |
Temperature - Storage | -40 to +80°C |
Humidity | 0 - 95% |
PHYSICAL SPECIFICATIONS | |
Dimensions (L x W x H) | 116 x 49 x 40 mm |
Weight | 400 g |
Download Name | |
Norsat LNA-9000CS Data Sheet |
