Norsat International Inc.

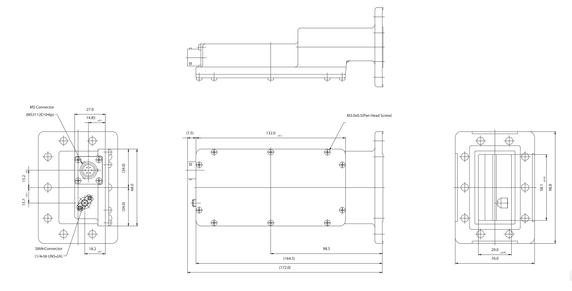

Norsat LNA-8000NP 8000 Single-Band C-Band LNA
Product Code:
LNA-8000NP
Condition:
New
Availability:
2 pcs
Weight:
0.63 KGS
Width:
10.00
(cm)
Height:
7.00
(cm)
Depth:
18.10
(cm)
$1,650.00
Norsat’s LNA's provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard C-Band LNAs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNAs. 8000 Series.
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | 3.40 - 4.20 GHz |
| Noise Figure | 30 K max. at room temp. |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Input VSWR | 2.2 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.2 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | MS3112E10-6P |
| Power Requirements | +15 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | N: 50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 70 mm |
| Product Length | 181 mm |
| Product Weight | 0.63 kg |
| Product Width | 100 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.435 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 1.0875 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 190 x 115 x 77 mm |
| Unit Package Height | 77 mm |
| Unit Package Length | 190 mm |
| Unit Package Weight | 0.64 kg |
| Unit Package Width | 115 mm |
| Warranty | 3 years |
5 customers are viewing this product
Details
Norsat’s LNA's provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard C-Band LNAs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNAs. 8000 Series.
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | 3.40 - 4.20 GHz |
| Noise Figure | 30 K max. at room temp. |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Input VSWR | 2.2 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.2 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | MS3112E10-6P |
| Power Requirements | +15 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | N: 50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 70 mm |
| Product Length | 181 mm |
| Product Weight | 0.63 kg |
| Product Width | 100 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.435 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 1.0875 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 190 x 115 x 77 mm |
| Unit Package Height | 77 mm |
| Unit Package Length | 190 mm |
| Unit Package Weight | 0.64 kg |
| Unit Package Width | 115 mm |
| Warranty | 3 years |
Download
| Download Name | |
| Norsat LNA-8000NP Data Sheet | |
