Norsat International Inc.

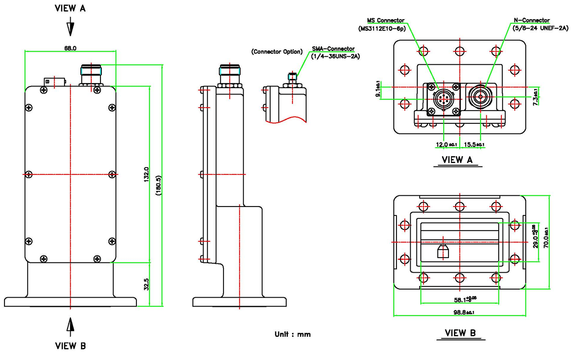

Norsat LNA-100143 Single-Band C-Band LNA
Product Code:
LNA-100143
Condition:
New
Availability:
2 pcs
Weight:
0.63 KGS
Width:
9.88
(cm)
Height:
7.00
(cm)
Depth:
16.45
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | 3.40 - 4.80 GHz |
| Noise Figure | 45K max. |
| RF SPECIFICATIONS | |
| Conversion Gain Min | 60 dB |
| Gain Flatness | ±3 dB max. |
| Input VSWR | 2.2 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.2 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 200 mA max. |
| Power Connector | MS3112E10-6P |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | N-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -15°C to +50°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 70.0 mm |
| Product Length | 164.5 mm |
| Product Weight | 0.63 kg |
| Product Width | 98.8 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.435 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 1.0875 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 190 x 115 x 77 mm |
| Unit Package Height | 77 mm |
| Unit Package Length | 190 mm |
| Unit Package Weight | 0.64 kg |
| Unit Package Width | 115 mm |
| Warranty | 3 years |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | 3.40 - 4.80 GHz |
| Noise Figure | 45K max. |
| RF SPECIFICATIONS | |
| Conversion Gain Min | 60 dB |
| Gain Flatness | ±3 dB max. |
| Input VSWR | 2.2 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.2 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 200 mA max. |
| Power Connector | MS3112E10-6P |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | N-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -15°C to +50°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 70.0 mm |
| Product Length | 164.5 mm |
| Product Weight | 0.63 kg |
| Product Width | 98.8 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.435 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 1.0875 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 190 x 115 x 77 mm |
| Unit Package Height | 77 mm |
| Unit Package Length | 190 mm |
| Unit Package Weight | 0.64 kg |
| Unit Package Width | 115 mm |
| Warranty | 3 years |
