Norsat International Inc.
Norsat LNA-100135 Single-Band Ku-Band LNA
Product Code:
LNA-100135
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.30 KGS
Width:
4.00
(cm)
Height:
4.00
(cm)
Depth:
10.00
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Input Frequency Band 1 | 10.70 - 12.75 GHz |
| Noise Figure Max At Over Temperature | 1.1 dB |
| Noise Figure Max At Room Temperature | 0.9 dB |
| Output Frequency Band 1 | 10.70 - 12.75 GHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 63 dB |
| Conversion Gain Min | 57 dB |
| Conversion Gain Typ | 60 dB |
| Desensitization Threshold | > -30 dBm |
| Gain Flatness Over Any 250Mhz Bandwidth | ≤ 2 dB p-p |
| Group Delay Ripple Over Any 250Mhz Bandwidth | 5 ns max. |
| IMD3 | <-50 dBc with 2 carriers at -95 dBm each input |
| Input Level Range | -92 to -130 dBm |
| Input VSWR | 2.0 : 1 max. |
| Output P1db | + 10 dBm min. |
| Output VSWR | 2.0 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 250 mA max. |
| Input Power | via Seperate SMA-Connector |
| Power Consumption | 5W max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-75 waveguide grooved |
| RF Output Connector | SMA |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 100% non-condensing |
| IP Rating | IP 67 |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -60°C to +85°C |

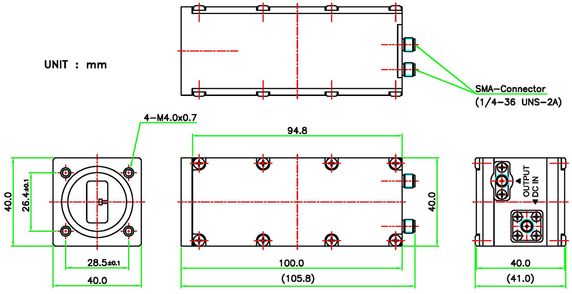

| PHYSICAL SPECIFICATIONS | |
| Product Height | 40 mm |
| Product Length | 100 mm |
| Product Weight | 0.300 kg |
| Product Width | 40 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 150 x 96 x 65 mm |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Input Frequency Band 1 | 10.70 - 12.75 GHz |
| Noise Figure Max At Over Temperature | 1.1 dB |
| Noise Figure Max At Room Temperature | 0.9 dB |
| Output Frequency Band 1 | 10.70 - 12.75 GHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 63 dB |
| Conversion Gain Min | 57 dB |
| Conversion Gain Typ | 60 dB |
| Desensitization Threshold | > -30 dBm |
| Gain Flatness Over Any 250Mhz Bandwidth | ≤ 2 dB p-p |
| Group Delay Ripple Over Any 250Mhz Bandwidth | 5 ns max. |
| IMD3 | <-50 dBc with 2 carriers at -95 dBm each input |
| Input Level Range | -92 to -130 dBm |
| Input VSWR | 2.0 : 1 max. |
| Output P1db | + 10 dBm min. |
| Output VSWR | 2.0 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 250 mA max. |
| Input Power | via Seperate SMA-Connector |
| Power Consumption | 5W max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-75 waveguide grooved |
| RF Output Connector | SMA |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 100% non-condensing |
| IP Rating | IP 67 |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -60°C to +85°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 40 mm |
| Product Length | 100 mm |
| Product Weight | 0.300 kg |
| Product Width | 40 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 150 x 96 x 65 mm |
| Warranty | 1 year |
