Norsat International Inc.
Norsat LNA-100133 Single-Band Ka-Band LNA with Isolator
Product Code:
LNA-100133
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.45 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 22.5 - 23.5 GHz |
| Noise Figure Max | 1.8 dB |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 60 dB |
| Conversion Gain Min | 50 dB |
| Conversion Gain Typ | 55 dB |
| Gain Flatness | 4 dB p-p max. |
| Gain Ripple (At Per 36Mhz) | 1 dB p-p max. |
| Input VSWR | 1.5 : 1 max. (with waveguide isolator) |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.2 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 250 mA max. |
| Input Power | MS3112E10-6P |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |

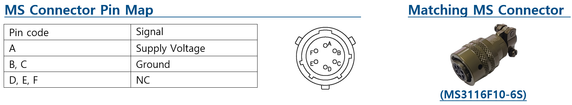

| MS Connector Pin Map | Supply Voltage: Pin A Ground: Pin B, C NC: Pin D, E, F |
| RF Input Connector | WR-42 Waveguide Grooved |
| RF Output Connector | SMA Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Dimensions (Lxwxh) | 103.6 mm x 60.0 mm x 45.0 mm |
| Product Weight | 0.45 kg |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
