Norsat International Inc.
Norsat LNA-100099 Single-Band Ka-Band LNA
Product Code:
LNA-100099
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.45 KGS
Width:
6.00
(cm)
Height:
4.50
(cm)
Depth:
10.36
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 17.7 - 21.2 GHz |
| Noise Figure Max | 1.8 dB |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 60 dB |
| Conversion Gain Min | 50 dB |
| Conversion Gain Typ | 55 dB |
| Gain Flatness (Over Full Band) | ± 2.0 dB max. |
| Gain Ripple (At Per 125Mhz) | ± 0.75 dB max. |
| Gain Ripple (At Per 20Mhz) | ± 0.3 dB max. |
| Gain Ripple (At Per 2Ghz) | ± 1.5 dB max. |
| Input VSWR | 3.0 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.2 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 250 mA max. |

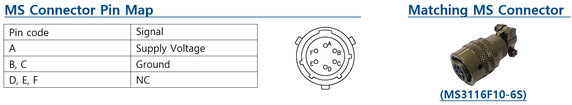

| Input Power | MS3112E10-6P |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| Input Connector | WR-42 waveguide grooved |
| Output Connector | SMA-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 45.0 mm |
| Product Length | 103.6 mm |
| Product Weight | 0.45 kg |
| Product Width | 60.0 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 17.7 - 21.2 GHz |
| Noise Figure Max | 1.8 dB |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 60 dB |
| Conversion Gain Min | 50 dB |
| Conversion Gain Typ | 55 dB |
| Gain Flatness (Over Full Band) | ± 2.0 dB max. |
| Gain Ripple (At Per 125Mhz) | ± 0.75 dB max. |
| Gain Ripple (At Per 20Mhz) | ± 0.3 dB max. |
| Gain Ripple (At Per 2Ghz) | ± 1.5 dB max. |
| Input VSWR | 3.0 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.2 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 250 mA max. |
| Input Power | MS3112E10-6P |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| Input Connector | WR-42 waveguide grooved |
| Output Connector | SMA-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +60°C |

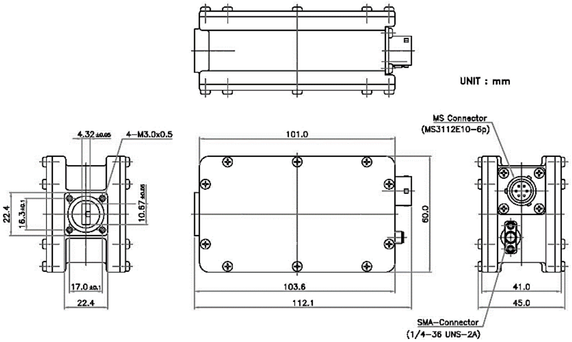

| PHYSICAL SPECIFICATIONS | |
| Product Height | 45.0 mm |
| Product Length | 103.6 mm |
| Product Weight | 0.45 kg |
| Product Width | 60.0 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
