Norsat International Inc.

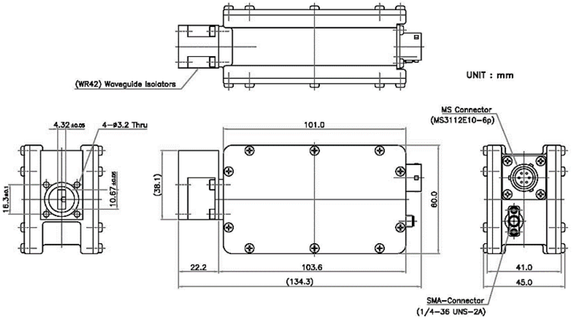

Norsat LNA-100095 Single-Band Ka-Band LNA LNA-100095/LNA-100096
Product Code:
LNA-100095
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.45 KGS
Width:
6.00
(cm)
Height:
4.50
(cm)
Depth:
10.36
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 17.7 - 21.2 GHz |
| Noise Figure | 1.7 dB |
| Product Family | LNA |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 62 dB |
| Conversion Gain Min | 50 dB |
| Conversion Gain Typ | 55 dB |
| Gain Flatness | ≤ 6 dB p-p max. (Over Tempeature) |
| Gain Ripple (At Per 40Mhz) | ≤ 1 dB p-p max. |
| Input VSWR | 1.5 : 1 max. (Includes a Waveguide Isolator) |
| Output P1db | + 10 dBm min. |
| Output VSWR | 2.0 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 300 mA max. |
| Input Power | MS3112E10-6P |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| Input W/G Flange | WR-42 |
| Output Connector | SMA-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +65°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 45.0 mm |
| Product Length | 103.6 mm |
| Product Weight | 0.45 kg |
| Product Width | 60 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Warranty | 3 years |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 17.7 - 21.2 GHz |
| Noise Figure | 1.7 dB |
| Product Family | LNA |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 62 dB |
| Conversion Gain Min | 50 dB |
| Conversion Gain Typ | 55 dB |
| Gain Flatness | ≤ 6 dB p-p max. (Over Tempeature) |
| Gain Ripple (At Per 40Mhz) | ≤ 1 dB p-p max. |
| Input VSWR | 1.5 : 1 max. (Includes a Waveguide Isolator) |
| Output P1db | + 10 dBm min. |
| Output VSWR | 2.0 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 300 mA max. |
| Input Power | MS3112E10-6P |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| Input W/G Flange | WR-42 |
| Output Connector | SMA-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +65°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 45.0 mm |
| Product Length | 103.6 mm |
| Product Weight | 0.45 kg |
| Product Width | 60 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Warranty | 3 years |
