Norsat International Inc.

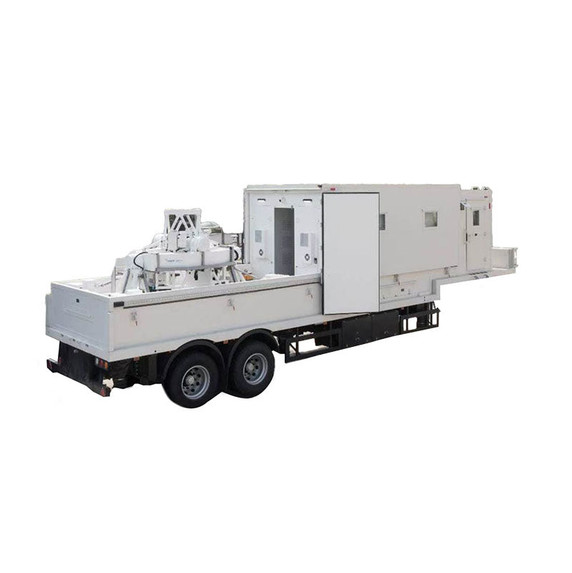

Norsat LCS001 Vehicle Mounted Laser Communication Ground Station
Product Code:
LCS001
Condition:
New
Availability:
10 - 12 Weeks
Weight:
2,000.00 KGS
Width:
160.00
(cm)
Height:
195.00
(cm)
Depth:
300.00
(cm)
$755,600.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 0.5 m |
| ANTENNA SPECIFICATIONS | |
| Pointing Accuracy | <3 µrad (RMS) |
| Tracking Accuracy | <2 µrad (RMS) |
| RF SPECIFICATIONS | |
| Capture Time | ≤10s |
| Communication Systems | OOK system, PPM system |
| Communication Wavelengths | 1550 nm; 800 nm |
| Operating Coverage | No blind spots at the zenith |
| INTERFACE SPECIFICATIONS | |
| Communication Speed Range | 0.1 Gbps - 10 Gbps |
| Encoding Decoding Methods | RS (255223), LDPC (7/8) |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 1950 mm |
| Product Length | 3000 mm |
| Product Weight | 2000 kg |
| Product Width | 1600 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| Harmonized System Code | 8529109090 |
| Unit Package Dimensions | 3200 x 1800 x 2150 mm |
| Unit Package Weight | 2200 kg |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Antenna Aperture | 0.5 m |
| ANTENNA SPECIFICATIONS | |
| Pointing Accuracy | <3 µrad (RMS) |
| Tracking Accuracy | <2 µrad (RMS) |
| RF SPECIFICATIONS | |
| Capture Time | ≤10s |
| Communication Systems | OOK system, PPM system |
| Communication Wavelengths | 1550 nm; 800 nm |
| Operating Coverage | No blind spots at the zenith |
| INTERFACE SPECIFICATIONS | |
| Communication Speed Range | 0.1 Gbps - 10 Gbps |
| Encoding Decoding Methods | RS (255223), LDPC (7/8) |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 1950 mm |
| Product Length | 3000 mm |
| Product Weight | 2000 kg |
| Product Width | 1600 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| Harmonized System Code | 8529109090 |
| Unit Package Dimensions | 3200 x 1800 x 2150 mm |
| Unit Package Weight | 2200 kg |
| Warranty | 1 year |
