Norsat International Inc.
Norsat 1000 Series BDC-1000XCSD Ku-Band Single-band BDC
Product Code:
BDC-1000XCSD
Availability:
YES
Weight:
0.30 KGS
Width:
7.80
(cm)
Height:
4.40
(cm)
Depth:
10.70
(cm)
$1,980.00
Norsats Block Downconverters (BDCs) provide high performance signal conversion for satellite communication.
| KEY SPECIFICATIONS | |
| Product Family | 1000 Series |
| Band | Ku-Band |
| # of onboard LOs | Single-band |
| LO Stability | Phase Locked to External Reference |
| Noise Figure | 15 dB |
| Input Frequency - Band 1 | Ku-Band: 10.95 - 11.70 GHz |
| Output Frequency 1 | L-Band: 950 - 1700 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 10.00 GHz |
| Phase Noise @ 1KHz offset | Depends on External Reference |
| Phase Noise @ 10KHz offset | Depends on External Reference |
| Phase Noise @ 100KHz offset | Depends on External Reference |
| Conversion Gain | 20 dB typ., 18 dB min., 22 dB max. |
| Input VSWR | 1.8 : 1 |
| Output VSWR | 2.0 : 1 |
| Output P1dB compression point | 5 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 15 - 24 V |
| Current Drain | 300 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | S - SMA |
| RF Output Connector | S - SMA |
| M & C SPECIFICATIONS | |

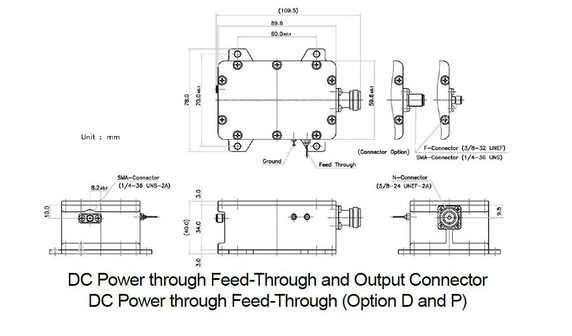

| Input Power Port | DC Power via Feed-Through & Output Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |

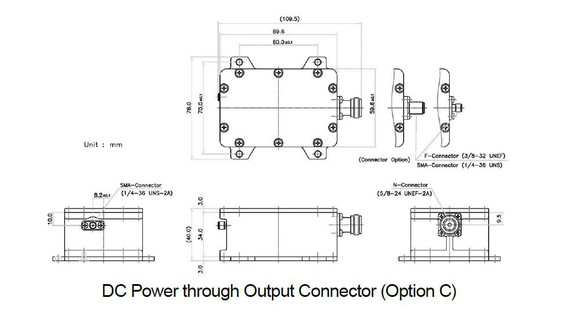

| Dimensions (L x W x H) | 107 x 78 x 44 mm |
| Weight | 300 g |
5 customers are viewing this product
Details
Norsats Block Downconverters (BDCs) provide high performance signal conversion for satellite communication.
| KEY SPECIFICATIONS | |
| Product Family | 1000 Series |
| Band | Ku-Band |
| # of onboard LOs | Single-band |
| LO Stability | Phase Locked to External Reference |
| Noise Figure | 15 dB |
| Input Frequency - Band 1 | Ku-Band: 10.95 - 11.70 GHz |
| Output Frequency 1 | L-Band: 950 - 1700 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 10.00 GHz |
| Phase Noise @ 1KHz offset | Depends on External Reference |
| Phase Noise @ 10KHz offset | Depends on External Reference |
| Phase Noise @ 100KHz offset | Depends on External Reference |
| Conversion Gain | 20 dB typ., 18 dB min., 22 dB max. |
| Input VSWR | 1.8 : 1 |
| Output VSWR | 2.0 : 1 |
| Output P1dB compression point | 5 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 15 - 24 V |
| Current Drain | 300 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | S - SMA |
| RF Output Connector | S - SMA |
| M & C SPECIFICATIONS | |
| Input Power Port | DC Power via Feed-Through & Output Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 107 x 78 x 44 mm |
| Weight | 300 g |
