Norsat International Inc.
Norsat 1000 Series BDC-1000GEFD Ku-Band Single-band BDC
Product Code:
BDC-1000GEFD
Availability:
YES
Weight:
0.30 KGS
Width:
7.80
(cm)
Height:
4.40
(cm)
Depth:
10.70
(cm)
$1,760.00
Norsats Block Downconverters (BDCs) provide high performance signal conversion for satellite communication.
| KEY SPECIFICATIONS | |
| Product Family | 1000 Series |
| Band | Ku-Band |
| # of onboard LOs | Single-band |
| LO Stability | +/- 30 kHz |
| Noise Figure | 10 dB |
| Input Frequency - Band 1 | Ku-Band: 10.70 - 11.70 GHz |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 9.75 GHz |
| Conversion Gain | 20 dBm |
| Gain Variation over temperature | +/- 2.5 dBm at any constant frequency |
| Input VSWR | 1.9 : 1 |
| Output VSWR | 2.0 : 1 |
| Output P1dB compression point | 6 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 15 - 24 V |
| Current Drain | 260 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | SMA |
| RF Output Connector | F-75 Ohm |
| M & C SPECIFICATIONS | |
| Input Power Port | DC Power via Feed-Through & Output Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Humidity | 0 - 95% |
| PHYSICAL SPECIFICATIONS | |

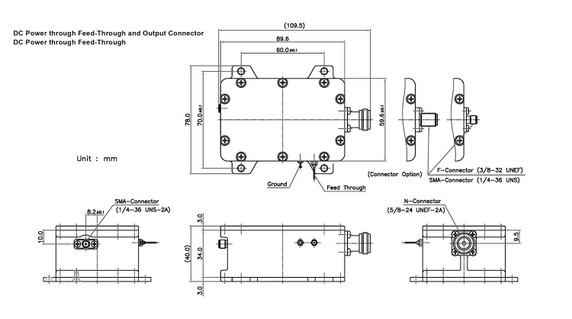

| Dimensions (L x W x H) | 107 x 78 x 44 mm |
| Weight | 300 g |
5 customers are viewing this product
Details
Norsats Block Downconverters (BDCs) provide high performance signal conversion for satellite communication.
| KEY SPECIFICATIONS | |
| Product Family | 1000 Series |
| Band | Ku-Band |
| # of onboard LOs | Single-band |
| LO Stability | +/- 30 kHz |
| Noise Figure | 10 dB |
| Input Frequency - Band 1 | Ku-Band: 10.70 - 11.70 GHz |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 9.75 GHz |
| Conversion Gain | 20 dBm |
| Gain Variation over temperature | +/- 2.5 dBm at any constant frequency |
| Input VSWR | 1.9 : 1 |
| Output VSWR | 2.0 : 1 |
| Output P1dB compression point | 6 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 15 - 24 V |
| Current Drain | 260 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | SMA |
| RF Output Connector | F-75 Ohm |
| M & C SPECIFICATIONS | |
| Input Power Port | DC Power via Feed-Through & Output Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Humidity | 0 - 95% |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 107 x 78 x 44 mm |
| Weight | 300 g |
