Norsat International Inc.

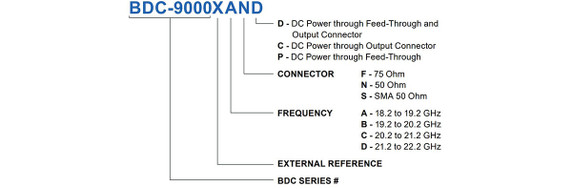

Norsat BDC-9000XCS 9000X Single Band Ka-Band EXT REF BDC
Product Code:
BDC-9000XCS
Condition:
New
Availability:
6 - 8 Weeks
Weight:
0.40 KGS
Width:
7.80
(cm)
Height:
4.40
(cm)
Depth:
9.00
(cm)
$4,759.00
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | -5 to +5 dBm |
| Input Frequency Band 1 | 20.20 - 21.20 GHz |
| LO Frequency 1 | 19.25 GHz |
| LO Stability | Ext Ref |
| Noise Figure | 18 dB max. at room temp. |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 28 dB |
| Conversion Gain Min | 22 dB |
| Conversion Gain Typ | 25 dB |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Input VSWR | 2.2 : 1 max. |
| Output P1db | + 5 dBm min. |
| Phase Noise SSB Max | Depends on External Reference |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 15 - 24 V |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | S: SMA 50 Ohm |
| RF Output Connector | S: SMA 50 Ohm |
| M AND C SPECIFICATIONS | |
| Input Power Port | DC Power through Feed-Through and Output Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 44 mm |
| Product Length | 90 mm |
| Product Weight | 0.4 kg |
| Product Width | 78 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 109 mm x 78 mm x 40 mm |
| Unit Package Height | 40 mm |
| Unit Package Length | 109 mm |
| Unit Package Width | 78 mm |
| Warranty | 3 years |
5 customers are viewing this product
Details
Norsat’s Block Downconverters (BDCs) provide high performance signal conversion for satellite communication.
