Norsat International Inc.

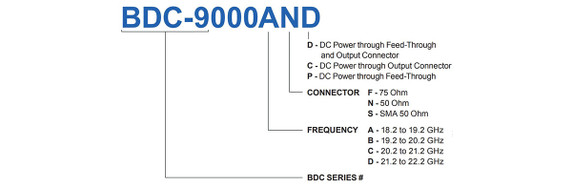

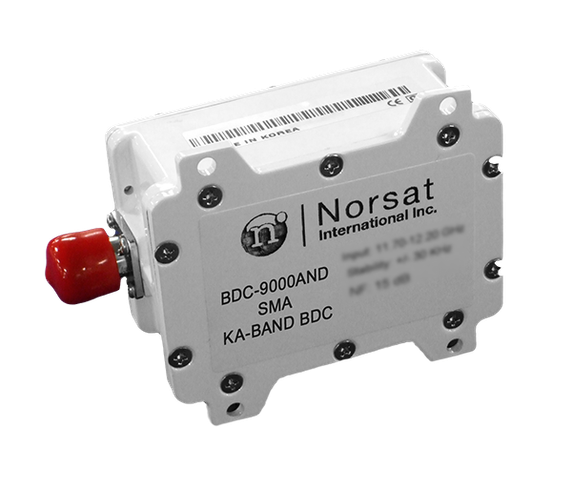

Norsat 9000 Series BDC-9000BFD Ka-Band Single-band BDC
Product Code:
BDC-9000BFD
Availability:
YES
Weight:
0.40 KGS
Width:
7.80
(cm)
Height:
4.40
(cm)
Depth:
9.00
(cm)
$3,520.00
Norsats Block Downconverters (BDCs) provide high performance signal conversion for satellite communication.
| KEY SPECIFICATIONS | |
| Product Family | 9000 Series |
| Band | Ka-Band |
| # of onboard LOs | Single-band |
| LO Stability | ± 50 kHz max. |
| Noise Figure | 18 dB |
| Input Frequency - Band 1 | Ka-Band: 19.20 - 20.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 18.25 GHz |
| Phase Noise @ 1KHz offset | -70 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -95 dBc/Hz |
| Conversion Gain | 25 dB typ |
| Gain Variation over operating band | 4.0 dB p-p |
| Input VSWR | 2.2 : 1 |
| Output VSWR | 2.1 : 1 |
| Output P1dB compression point | 5 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 15 - 24 V |
| Current Drain | 350 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | SMA |
| RF Output Connector | F-75 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 90 x 78 x 44 mm |
| Weight | 400 g |
5 customers are viewing this product
Details
Norsats Block Downconverters (BDCs) provide high performance signal conversion for satellite communication.
| KEY SPECIFICATIONS | |
| Product Family | 9000 Series |
| Band | Ka-Band |
| # of onboard LOs | Single-band |
| LO Stability | ± 50 kHz max. |
| Noise Figure | 18 dB |
| Input Frequency - Band 1 | Ka-Band: 19.20 - 20.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 18.25 GHz |
| Phase Noise @ 1KHz offset | -70 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -95 dBc/Hz |
| Conversion Gain | 25 dB typ |
| Gain Variation over operating band | 4.0 dB p-p |
| Input VSWR | 2.2 : 1 |
| Output VSWR | 2.1 : 1 |
| Output P1dB compression point | 5 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 15 - 24 V |
| Current Drain | 350 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | SMA |
| RF Output Connector | F-75 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 90 x 78 x 44 mm |
| Weight | 400 g |
