Norsat International Inc.

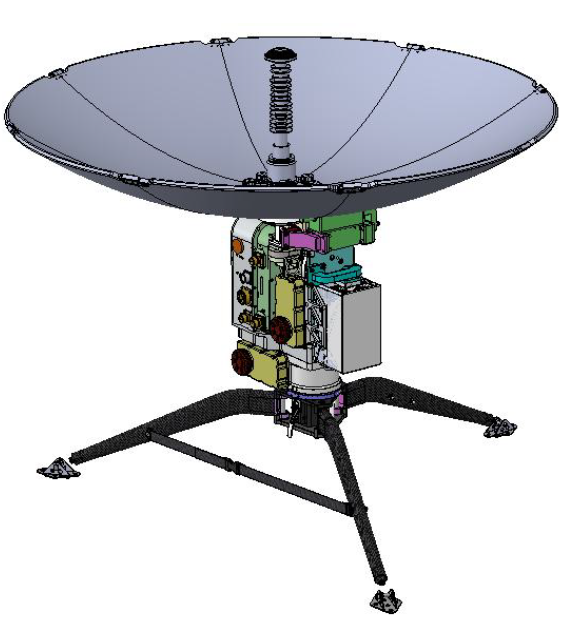

Norsat JM-100008 Journey ManPack 1.0m Ku-Band Auto Flyaway Antenna
Product Code:
JM-100008
Condition:
New
Availability:
10 - 12 Weeks
Weight:
26.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
1. Summary
The antenna is a portable satellite communication ground terminal designed for Ku-band satellite communications. It supports the transmission and reception of wireless microwave signals and allows for the integrated installation of equipment such as the BUC, LNB, modem, and router, enabling one-button automatic satellite acquisition.
2. System Composition
1) Antenna Feed Subsystem: Prime focus antenna (carbon fiber reflector), Ku-band dielectric feed, OMT, filters, rotary joints, etc.
2) Antenna Control Subsystem: Azimuth, elevation, and polarization motors, etc.
3) Tracking Subsystem: Beacon receiver, angle sensors, GPS, Wi-Fi module, ATPC control board, etc.
4) Power Supply Subsystem: PSU unit and mobile battery pack, supporting multiple power supply modes including mains power, battery operation, and generator power
3. System Features
1) A front-fed carbon fiber parabolic reflector is adopted. The overall system achieves 60% carbon fiber utilization, resulting in improved material stability, lighter weight, higher strength, and enhanced suitability for portable applications.
2) A cap-type dielectric feed is used to ensure high antenna gain and low sidelobe levels, delivering excellent RF performance.
3) The antenna system is equipped with a GPS positioning system, position sensing system, polarization adjustment system, servo drive system, automatic protection system, high-performance satellite beacon receiving system, antenna controller, and intelligent control and management software, among other components.
4) One-button operation enables automatic positioning, deployment, and satellite tracking within 3 minutes.
5) Under special conditions where GPS is unavailable, satellite longitude and latitude can be entered manually to quickly complete satellite acquisition.
6) Both motorized and manual control modes are provided, ensuring convenient emergency operation in various environments.
7) A handheld control terminal is provided, allowing satellite parameter configuration and system status monitoring directly from the handheld device.
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Equivalent Aperture | 1.0m |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Dielectric Antenna |
| Auto Acquisition Time | ≤ 3 min |
| Azimuth Angle | ± 200° |
| Azimuth Speed | 0.1°/s to 3°/s |
| Cross Polarization Isolation | ≥ 35dB (axial) |
| Elevation Angle | 10° - 90° |
| Elevation Speed | 0.1°/s to 3°/s |
| Movement Platform | Motorized El/Az Antenna |
| Pointing Accuracy | ≤0.3dB（R.M.S） |
| Polarization | Linear |
| Polarization Angle | ± 90° |
| Polarization Speed | 0.1°/s to 3°/s |
| Positioning Mode | Automatic GPS positioning, with manual input supported |
| Satellite Acquisition Mode | Beacon /DVB |
| Sidelobe | First sidelobe: ≤ -14 dB |
| RF SPECIFICATIONS | |
| Power Capacity | 100W |
| Rx Frequency | 10.7 - 12.75 GHz |
| Rx Gain | ≥39.9+20lg(f/12.50) dBi |
| Rx VSWR | 1.3 : 1 max. |
| Rx-Tx Port Isolation | ≥ 40 dB |
| Tx Frequency | 12.75 - 13.25 GHz |
| Tx Gain | ≥41.0+20lg(f/13.00) dBi |
| Tx VSWR | 1.3 : 1 max. |
| Tx-Rx Port Isolation | ≥ 85 dB |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | ≤ 80W (excluding BUC, in windless conditions) |
| Power Supply | 220VAC±10%，50Hz±2 Hz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | ≥ 95% (20 °C) |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -50 to +70°C |
| Weatherproofing | IP 65 |
| Wind Load Operational | ≤ 14 m/s (with ballast) |
| Wind Load Survival | ≤ 20 m/s (with ballast) |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Enclosed Accessories | Honda EU10i Generator Battery Pack |
| Number Of Cases | 1 Case |
| Product Weight | ≤ 26 kg (excluding BUC, LNB, packaging, and accessories) |
| Ruggedized Case 1 Height | 490 mm |
| Ruggedized Case 1 Length | 846 mm |
| Ruggedized Case 1 Weight | 48.2 kg max. |
| Ruggedized Case 1 Width | 620 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517700000 |
5 customers are viewing this product
Details
1. Summary
The antenna is a portable satellite communication ground terminal designed for Ku-band satellite communications. It supports the transmission and reception of wireless microwave signals and allows for the integrated installation of equipment such as the BUC, LNB, modem, and router, enabling one-button automatic satellite acquisition.
2. System Composition
1) Antenna Feed Subsystem: Prime focus antenna (carbon fiber reflector), Ku-band dielectric feed, OMT, filters, rotary joints, etc.
2) Antenna Control Subsystem: Azimuth, elevation, and polarization motors, etc.
3) Tracking Subsystem: Beacon receiver, angle sensors, GPS, Wi-Fi module, ATPC control board, etc.
4) Power Supply Subsystem: PSU unit and mobile battery pack, supporting multiple power supply modes including mains power, battery operation, and generator power
3. System Features
1) A front-fed carbon fiber parabolic reflector is adopted. The overall system achieves 60% carbon fiber utilization, resulting in improved material stability, lighter weight, higher strength, and enhanced suitability for portable applications.
2) A cap-type dielectric feed is used to ensure high antenna gain and low sidelobe levels, delivering excellent RF performance.
3) The antenna system is equipped with a GPS positioning system, position sensing system, polarization adjustment system, servo drive system, automatic protection system, high-performance satellite beacon receiving system, antenna controller, and intelligent control and management software, among other components.
4) One-button operation enables automatic positioning, deployment, and satellite tracking within 3 minutes.
5) Under special conditions where GPS is unavailable, satellite longitude and latitude can be entered manually to quickly complete satellite acquisition.
6) Both motorized and manual control modes are provided, ensuring convenient emergency operation in various environments.
7) A handheld control terminal is provided, allowing satellite parameter configuration and system status monitoring directly from the handheld device.
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Equivalent Aperture | 1.0m |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Dielectric Antenna |
| Auto Acquisition Time | ≤ 3 min |
| Azimuth Angle | ± 200° |
| Azimuth Speed | 0.1°/s to 3°/s |
| Cross Polarization Isolation | ≥ 35dB (axial) |
| Elevation Angle | 10° - 90° |
| Elevation Speed | 0.1°/s to 3°/s |
| Movement Platform | Motorized El/Az Antenna |
| Pointing Accuracy | ≤0.3dB（R.M.S） |
| Polarization | Linear |
| Polarization Angle | ± 90° |
| Polarization Speed | 0.1°/s to 3°/s |
| Positioning Mode | Automatic GPS positioning, with manual input supported |
| Satellite Acquisition Mode | Beacon /DVB |
| Sidelobe | First sidelobe: ≤ -14 dB |
| RF SPECIFICATIONS | |
| Power Capacity | 100W |
| Rx Frequency | 10.7 - 12.75 GHz |
| Rx Gain | ≥39.9+20lg(f/12.50) dBi |
| Rx VSWR | 1.3 : 1 max. |
| Rx-Tx Port Isolation | ≥ 40 dB |
| Tx Frequency | 12.75 - 13.25 GHz |
| Tx Gain | ≥41.0+20lg(f/13.00) dBi |
| Tx VSWR | 1.3 : 1 max. |
| Tx-Rx Port Isolation | ≥ 85 dB |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | ≤ 80W (excluding BUC, in windless conditions) |
| Power Supply | 220VAC±10%，50Hz±2 Hz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | ≥ 95% (20 °C) |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -50 to +70°C |
| Weatherproofing | IP 65 |
| Wind Load Operational | ≤ 14 m/s (with ballast) |
| Wind Load Survival | ≤ 20 m/s (with ballast) |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Enclosed Accessories | Honda EU10i Generator Battery Pack |
| Number Of Cases | 1 Case |
| Product Weight | ≤ 26 kg (excluding BUC, LNB, packaging, and accessories) |
| Ruggedized Case 1 Height | 490 mm |
| Ruggedized Case 1 Length | 846 mm |
| Ruggedized Case 1 Weight | 48.2 kg max. |
| Ruggedized Case 1 Width | 620 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517700000 |
