Norsat International Inc.

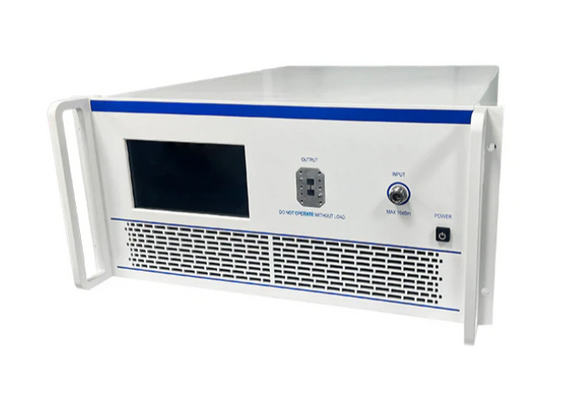

Norsat HPA-100007 High Power Amplifier Systems, 1-18GHz, 43dB Gain, 43dBm Psat,120V AC
Product Code:
HPA-100007
Condition:
New
Availability:
10 - 12 Weeks
Weight:
30.00 KGS
Width:
48.26
(cm)
Height:
17.78
(cm)
Depth:
50.00
(cm)
$0.00
- Wide Band: 1-18GHz
- Gain: 43dB Min
- Psat Output Power:43dBm Min
- Protection: Over TEM, over voltage, over current ,over VSWR protection
- 50 Ohm Matched Input / Output
| RF SPECIFICATIONS | |
| AC Voltage | 120 VAC |
| ESD Sensitivity(Hbm) | Class 0, passed 150V |
| Gain Flatness | ± 5 dB typ |
| Harmonics@Pout=43Dbm | -10 dBc max |
| Impedance | 50 Ohms |
| Input Frequency Band 1 | 1-18 GHz |
| Input VSWR | 2 :1 max |
| Output Psat Min | 43 dBm |
| Power Gain Min | 43 dB |
| RF Input Power | 0 dBm |
| Spurious@Pout=43Dbm | -60 dBc max. |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | 500W typ |
| INTERFACE SPECIFICATIONS | |
| Communication Connector | DB9/RJ45 |
| Control Functions | 1, Power setting On/Off 2,ALC automatic level control |
| Forward / Reverse Coupling | SMA Female/ SMA Female |
| Front Panel LCD Screen | 7 inch LCD Screen Display |
| Input/ Output Connector | N Female/N Female |
| Protection Functions | 1,Over TEM 2,Over voltage 3,Over current 4,Over VSWR |
| Remote Control | RS422/Ethernet |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude | 10,000 feet |
| Relative Humidity | 95% |
| Shock(Non Operating) | 20G for 11msc half sine wave, 3 axis both directions |
| Shock/Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis |
| Temperature Operational | -20°C to +50°C |
| Temperature Storage | -30°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Cooling | Built in Cooling system, forced air cooling |
| Product Weight | 30 kg max |
| Size | 19 Inch 4U*500 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517799000 |
| Unit Package Dimensions | N/A |
| Unit Package Weight | N/A |
5 customers are viewing this product
Details
- Wide Band: 1-18GHz
- Gain: 43dB Min
- Psat Output Power:43dBm Min
- Protection: Over TEM, over voltage, over current ,over VSWR protection
- 50 Ohm Matched Input / Output
| RF SPECIFICATIONS | |
| AC Voltage | 120 VAC |
| ESD Sensitivity(Hbm) | Class 0, passed 150V |
| Gain Flatness | ± 5 dB typ |
| Harmonics@Pout=43Dbm | -10 dBc max |
| Impedance | 50 Ohms |
| Input Frequency Band 1 | 1-18 GHz |
| Input VSWR | 2 :1 max |
| Output Psat Min | 43 dBm |
| Power Gain Min | 43 dB |
| RF Input Power | 0 dBm |
| Spurious@Pout=43Dbm | -60 dBc max. |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | 500W typ |
| INTERFACE SPECIFICATIONS | |
| Communication Connector | DB9/RJ45 |
| Control Functions | 1, Power setting On/Off 2,ALC automatic level control |
| Forward / Reverse Coupling | SMA Female/ SMA Female |
| Front Panel LCD Screen | 7 inch LCD Screen Display |
| Input/ Output Connector | N Female/N Female |
| Protection Functions | 1,Over TEM 2,Over voltage 3,Over current 4,Over VSWR |
| Remote Control | RS422/Ethernet |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude | 10,000 feet |
| Relative Humidity | 95% |
| Shock(Non Operating) | 20G for 11msc half sine wave, 3 axis both directions |
| Shock/Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis |
| Temperature Operational | -20°C to +50°C |
| Temperature Storage | -30°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Cooling | Built in Cooling system, forced air cooling |
| Product Weight | 30 kg max |
| Size | 19 Inch 4U*500 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517799000 |
| Unit Package Dimensions | N/A |
| Unit Package Weight | N/A |
