Norsat International Inc.

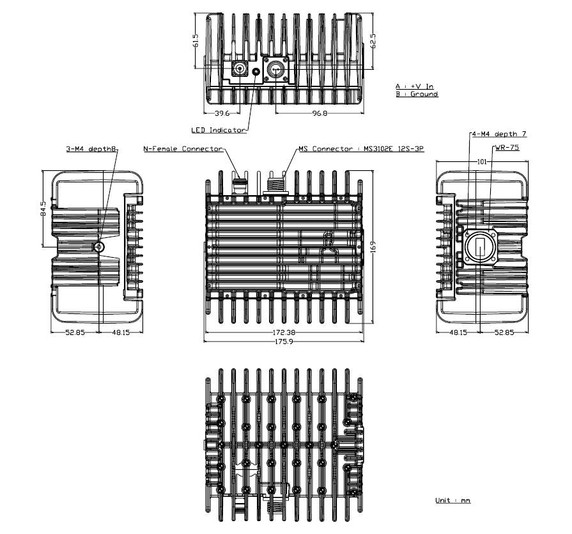

Norsat International Inc. ELMT-100040 ELEMENT 8W Ku-Band MINIBUC
Product Code:
ELMT-100040
Condition:
New
Weight:
4.00 KGS
Width:
22.50
(cm)
Height:
16.00
(cm)
Depth:
27.00
(cm)
$6,090.90
The Block Upconverter is designed to use for VSAT application. The Norsat BUC has high linearity and gain stability over the full operating temperature range. The standard output operating frequency range is 12.75-13.25 GHz. The BUC requires a reference signal (10MHz) either externally or internally to maintain correct transmit frequency. The BUC has either a N-type or F-type female connector for input and WR75 waveguide with a grooved flange for output.
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 950 - 1700 MHz |
| LO Frequency 1 | 11.80 GHz |
| Output Frequency Band 1 | 12.75 - 13.50 GHz |
| Output Power Rated | 8W |
| RF SPECIFICATIONS | |
| Gain Flatness (54mhz) | ≤ 1.5 dB p-p |
| Gain Flatness (over Full Band) | ≤ 5 dB p-p |
| Gain Flatness (over Temperature) | ≤ 5 dB p-p |
| Input VSWR | 2.0 : 1 |
| Linear Gain Typ | 65 dB |
| Output P1db | +39 dBm min. |
| Output Spurious In Band | ≤ -60 dBc |
| Output Spurious Out Of Band | ≤ -50 dBc |
| Output VSWR | 2.0 : 1 |
| Phase Noise 0.1khz Offset Typ | 65 dBc/Hz |
| Phase Noise 1khz Offset Typ | 75 dBc/Hz |
| Phase Noise 10khz Offset Typ | 85 dBc/Hz |
| Phase Noise 100khz Offset Typ | 95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | via IFL |
| Power Consumption | 75W max. |
| Power Requirements | +18 to +60V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| Output Connector | WR-75 waveguide grooved |
5 customers are viewing this product
Details
The Block Upconverter is designed to use for VSAT application. The Norsat BUC has high linearity and gain stability over the full operating temperature range. The standard output operating frequency range is 12.75-13.25 GHz. The BUC requires a reference signal (10MHz) either externally or internally to maintain correct transmit frequency. The BUC has either a N-type or F-type female connector for input and WR75 waveguide with a grooved flange for output.
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 950 - 1700 MHz |
| LO Frequency 1 | 11.80 GHz |
| Output Frequency Band 1 | 12.75 - 13.50 GHz |
| Output Power Rated | 8W |
| RF SPECIFICATIONS | |
| Gain Flatness (54mhz) | ≤ 1.5 dB p-p |
| Gain Flatness (over Full Band) | ≤ 5 dB p-p |
| Gain Flatness (over Temperature) | ≤ 5 dB p-p |
| Input VSWR | 2.0 : 1 |
| Linear Gain Typ | 65 dB |
| Output P1db | +39 dBm min. |
| Output Spurious In Band | ≤ -60 dBc |
| Output Spurious Out Of Band | ≤ -50 dBc |
| Output VSWR | 2.0 : 1 |
| Phase Noise 0.1khz Offset Typ | 65 dBc/Hz |
| Phase Noise 1khz Offset Typ | 75 dBc/Hz |
| Phase Noise 10khz Offset Typ | 85 dBc/Hz |
| Phase Noise 100khz Offset Typ | 95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | via IFL |
| Power Consumption | 75W max. |
| Power Requirements | +18 to +60V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| Output Connector | WR-75 waveguide grooved |
