Norsat International Inc.
Norsat 1000 Series HS1057AN Ku-Band Single-Band LNB

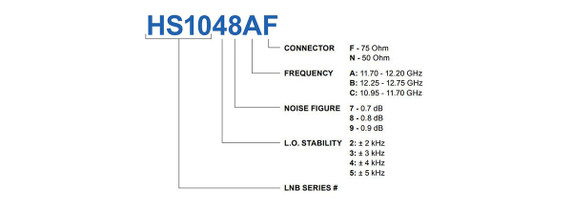

Product Code:
HS1057AN
Availability:
YES
Weight:
0.30 KGS
Width:
4.20
(cm)
Height:
4.20
(cm)
Depth:
11.10
(cm)
$462.00
Norsats Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. KU-BAND PLL LNB; 11.70-12.20GHZ; LO: +/-5KHZ; NF: 0.7DB; N-CONN
| KEY SPECIFICATIONS | |
| Product Family | 1000 Series |
| Band | Ku-Band |
| LO Type | PLL |
| # of onboard LOs | Single-band |
| LO Stability | +/- 5 kHz |
| Noise Figure | 0.7 dB |
| Input Frequency - Band 1 | Ku-Band: 11.70 - 12.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1450 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 10.75 GHz |
| Phase Noise @ 1KHz offset | -70 dBc/Hz |
| Phase Noise @ 10KHz offset | -75 dBc/Hz |
| Phase Noise @ 100KHz offset | -90 dBc/Hz |
| Conversion Gain | 60 dB typ |
| Gain Variation over operating band | ≤ 5 dB p-p |
| Input VSWR | 2.5 : 1 |
| Output VSWR | 2.2 : 1 |
| Output P1dB compression point | 4 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 15 - 24 V |
| Current Drain | 300 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-75 waveguide grooved |
| RF Output Connector | N-50 Ohm |
| M & C SPECIFICATIONS | |
| LED Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 110 x 42 x 42 mm |
| Weight | 300 g |
5 customers are viewing this product
Details
Norsats Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. KU-BAND PLL LNB; 11.70-12.20GHZ; LO: +/-5KHZ; NF: 0.7DB; N-CONN
| KEY SPECIFICATIONS | |
| Product Family | 1000 Series |
| Band | Ku-Band |
| LO Type | PLL |
| # of onboard LOs | Single-band |
| LO Stability | +/- 5 kHz |
| Noise Figure | 0.7 dB |
| Input Frequency - Band 1 | Ku-Band: 11.70 - 12.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1450 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 10.75 GHz |
| Phase Noise @ 1KHz offset | -70 dBc/Hz |
| Phase Noise @ 10KHz offset | -75 dBc/Hz |
| Phase Noise @ 100KHz offset | -90 dBc/Hz |
| Conversion Gain | 60 dB typ |
| Gain Variation over operating band | ≤ 5 dB p-p |
| Input VSWR | 2.5 : 1 |
| Output VSWR | 2.2 : 1 |
| Output P1dB compression point | 4 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 15 - 24 V |
| Current Drain | 300 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-75 waveguide grooved |
| RF Output Connector | N-50 Ohm |
| M & C SPECIFICATIONS | |
| LED Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 110 x 42 x 42 mm |
| Weight | 300 g |
