Norsat 1000 Series HS1039CN Ku-Band Single-Band LNB

Name: Norsat 1000 Series HS1039CN Ku-Band Single-Band LNB
Brand: Norsat International Inc.
SKU: HS1039CN
Price: 506 USD
Availability: InStock

No reviews yet

Product Code: HS1039CN

Availability: YES

Weight: 0.30 KGS

Width: 4.20 (cm)

Height: 4.20 (cm)

Depth: 11.10 (cm)

Norsat 1000 Series HS1039CN Ku-Band Single-Band LNB Data Sheet

$506.00

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. HS1000 Series.

KEY SPECIFICATIONS
Product Family	1000 Series
Band	Ku-Band
LO Type	PLL
# of onboard LOs	Single-band
LO Stability	+/- 3 kHz
Noise Figure	0.9 dB
Input Frequency - Band 1	Ku-Band: 10.95 - 11.70 GHz
Output Frequency 1	L-Band: 950 - 1700 MHz

RF SPECIFICATIONS
LO Frequency 1	10.00 GHz
Phase Noise @ 1KHz offset	-70 dBc/Hz
Phase Noise @ 10KHz offset	-75 dBc/Hz
Phase Noise @ 100KHz offset	-90 dBc/Hz
Conversion Gain	60 dB typ
Gain Variation over operating band	≤ 5 dB p-p
Input VSWR	2.5 : 1
Output VSWR	2.2 : 1
Output P1dB compression point	4 dBm

ELECTRICAL SPECIFICATIONS
Power Requirements	15 - 24 V
Current Drain	300 mA

INTERFACE SPECIFICATIONS
RF Input Connector	WR-75 waveguide grooved
RF Output Connector	N-50 Ohm

M & C SPECIFICATIONS
LED Indicators	None

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational	-40 to +60°C
Temperature - Storage	-40 to +60°C

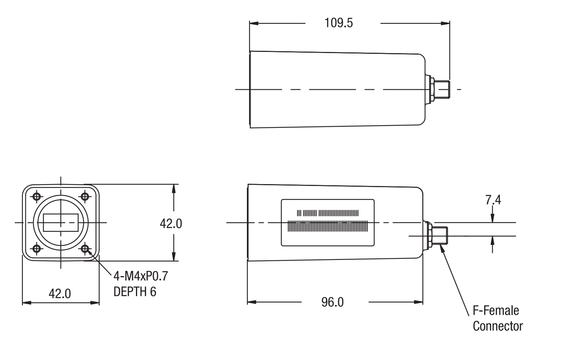

PHYSICAL SPECIFICATIONS
Dimensions (L x W x H)	110 x 42 x 42 mm
Weight	300 g
