Norsat International Inc.

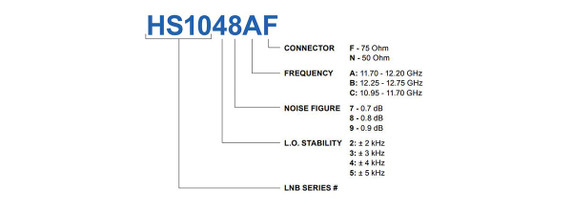

Norsat 1000 Series HS1038CN Ku-Band Single-Band LNB
Product Code:
HS1038CN
Availability:
YES
Weight:
0.30 KGS
Width:
4.20
(cm)
Height:
4.20
(cm)
Depth:
11.10
(cm)
$528.00
Norsat's Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. KU-BAND PLL LNB; 10.95-11.70GHZ; LO: +/-3KHZ; NF: 0.8DB; N-CONN
| KEY SPECIFICATIONS | |
| band | Ku-Band |
| input frequency band 1 | 10.95 - 11.70 GHz |
| LO frequency 1 | 10.00 GHz |
| LO stability | ±3 kHz |
| LO type | PLL |
| noise figure max | 0.9 dB |
| noise figure typ | 0.8 dB |
| number of onboard LOs | Single-Band |
| output frequency band 1 | 950 - 1700 MHz |
| Product Revision | C |
| RF SPECIFICATIONS | |
| conversion gain max | 65 dB |
| conversion gain min | 55 dB |
| conversion gain typ | 60 dB |
| Gain Flatness (over full band) | ≤ 5 dB p-p |
| input VSWR | 2.5 : 1 max. |
| output P1dB | + 4 dBm min. |
| output VSWR | 2.2 : 1 max. |
| phase noise 100kHz offset max | -90 dBc/Hz |
| phase noise 10kHz offset max | -75 dBc/Hz |
| phase noise 1kHz offset max | -70 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| current consumption | 300 mA max. |
| power requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF connector | N-Connector |
| RF input connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP rating | IP 67 |
| temperature operational | -40 to +60°C |
| temperature storage | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| product height | 42 mm |
| product length | 110 mm |
| product weight | 0.3 kg |
| product width | 42 mm |
5 customers are viewing this product
Details
Norsat's Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. KU-BAND PLL LNB; 10.95-11.70GHZ; LO: +/-3KHZ; NF: 0.8DB; N-CONN
| KEY SPECIFICATIONS | |
| band | Ku-Band |
| input frequency band 1 | 10.95 - 11.70 GHz |
| LO frequency 1 | 10.00 GHz |
| LO stability | ±3 kHz |
| LO type | PLL |
| noise figure max | 0.9 dB |
| noise figure typ | 0.8 dB |
| number of onboard LOs | Single-Band |
| output frequency band 1 | 950 - 1700 MHz |
| Product Revision | C |
| RF SPECIFICATIONS | |
| conversion gain max | 65 dB |
| conversion gain min | 55 dB |
| conversion gain typ | 60 dB |
| Gain Flatness (over full band) | ≤ 5 dB p-p |
| input VSWR | 2.5 : 1 max. |
| output P1dB | + 4 dBm min. |
| output VSWR | 2.2 : 1 max. |
| phase noise 100kHz offset max | -90 dBc/Hz |
| phase noise 10kHz offset max | -75 dBc/Hz |
| phase noise 1kHz offset max | -70 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| current consumption | 300 mA max. |
| power requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF connector | N-Connector |
| RF input connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP rating | IP 67 |
| temperature operational | -40 to +60°C |
| temperature storage | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| product height | 42 mm |
| product length | 110 mm |
| product weight | 0.3 kg |
| product width | 42 mm |
