Norsat International Inc.

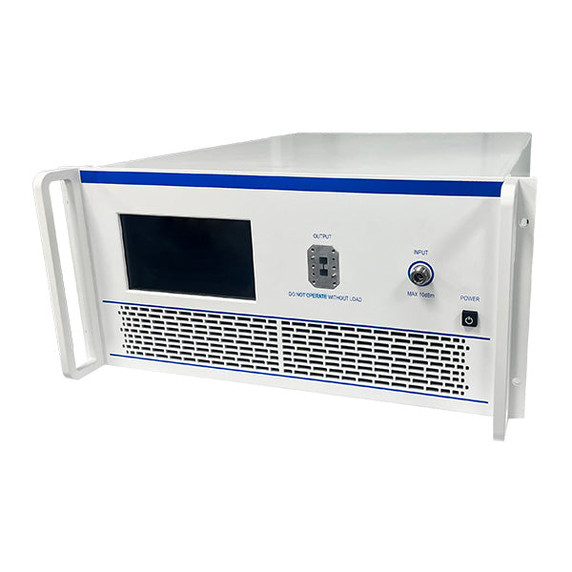

Norsat HPASP001 RF High Power Amplifier Systems 4 - 8GHz
Product Code:
HPASP001
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$491,111.11
| KEY SPECIFICATIONS | |
| Gain Min | 60dB |
| Input Frequency Band 1 | 4 - 8GHz |
| Number Of Bands | Single-Band |
| Output Psat Typ | ±3 dB typ. |
| Peak Output Power | 60dBm min. |
| Transmission Mode | Pulse Wave |
| RF SPECIFICATIONS | |
| Duty Cycle | 0.2 |
| ESD Sensitivity(Hbm) | Class 0, passed 150V |
| Fall Time | 30ns typ.; 50ns max. |
| Harmonics | -15dBc typ.; -12dBc max. |
| Input VSWR Max | 2.0 : 1 |
| Modulation Frequency | 100KHz max. |
| Output Power Adjust Range | 30dB typ. |
| Output Power Adjust Step | ±0.5dB typ. |
| Peak Power Flatness | ±1.5dB max. |
| Pulse Width | 0.1μs min.; 1000μs max. |
| Rise Time | 30ns typ.; 50ns max. |
| Spurious | -60dBc typ.; -50dBc max. |
| ELECTRICAL SPECIFICATIONS | |
| Control Functions | 1. Power setting On/Off; 2. ALC automatic level control; 3. RF ON/OFF; 4. Gain adjustment; 5. Real time status query |
| Impedance | 50Ohms |
| Power Consumption | 430Watts@5%, 850Watts@10% |
| Power Requirements | 220V AC |
| Protection Functions | 1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR |
| Supply Bias Voltage | 260V AC |
| INTERFACE SPECIFICATIONS | |
| Communication Functions | RS422/LAN/GPIB/Ethernet, LCD Screen Display |
| Input Connector | N Female |
| Output Connector | N Female |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude | 50000 feet |
| Relative Humidity | 0.95 |
| Shock (Non Operating) | 20g for 11msc half sin wave, 3 axis both directions |
| Shock/Vibration (MIL-STD-810F) | 25g rms (15-degree 2KHz) endurance, 1 hour per axis |
| Temperature Operational | -20°C to +50°C |
| Temperature Storage | -45°C to +65°C |
| PHYSICAL SPECIFICATIONS | |
| Cooling System | Built in Cooling system, forced air cooliong |
| Product Dimensions | 19 Inch 5U |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | 3A001.b.4.b.1 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517799000 |
| Unit Package Dimensions | - |
| Unit Package Weight | - |
| Warranty | 3 years |
