Norsat International Inc.

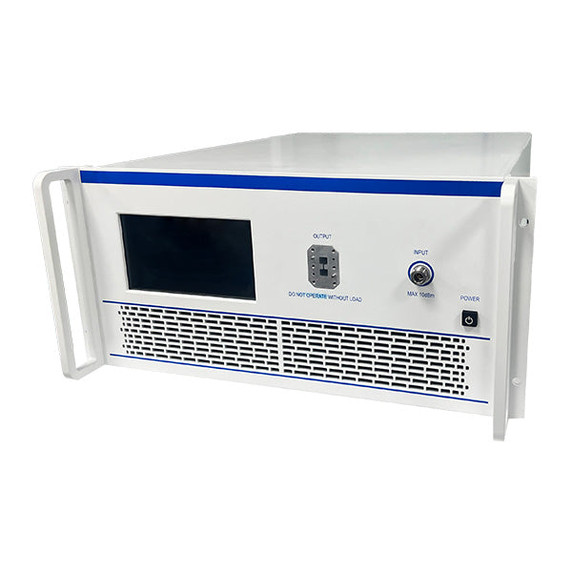

Norsat HPASC059 RF High Power Amplifier Systems 18 - 26.5 GHz
Product Code:
HPASC059
Condition:
New
Availability:
6 - 8 Weeks
Weight:
25.00 KGS
$74,706.67
| KEY SPECIFICATIONS | |
| Gain Min | 47 dB |
| Input Frequency Band 1 | 18 - 26.5 GHz |
| Number Of Bands | Single-Band |
| Output Psat Min | 47 dBm |
| Transmission Mode | Continuous Wave |
| RF SPECIFICATIONS | |
| ESD Sensitivity(Hbm) | Class 0, passed 150V |
| Gain Flatness Max | ±3 dB |
| Harmonics | -15 dBc max. |
| Input VSWR Max | 2.0 : 1 |
| RF Input Power | 10 dBm |
| Saturated Power Flatness | ±1.5dB max. |
| Spurious | -60 dBc max. |
| ELECTRICAL SPECIFICATIONS | |
| Control Functions | 1. Power setting On/Off; 2. ALC automatic level control |
| Impedance | 50 Ohms |
| Power Requirements | 220V AC |
| Protection Functions | 1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR |
| Remote Control | Ethernet RJ-45 TCP/IP |
| Supply Bias Voltage | 260V AC |
| INTERFACE SPECIFICATIONS | |
| AC Power Interface | Air switch |
| Input Connector | 2.92 Female |
| Output Connector | WR-42 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -20°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Cooling System | Built in Cooling system, forced air cooliong |
| Product Dimensions | 19 Inch 3U mm |
| Product Weight | 25 kg |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | 3A001.b.4.b.4 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517799000 |
| Unit Package Dimensions | - |
| Unit Package Weight | 28 kg |
| Warranty | 3 years |
