Norsat International Inc.

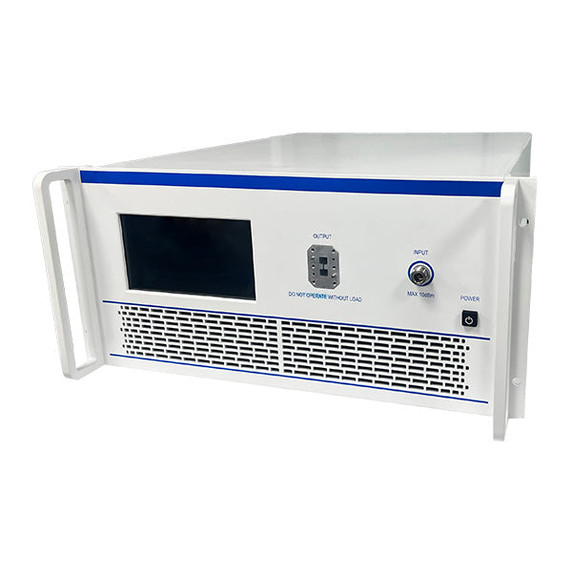

Norsat HPASC042 RF High Power Amplifier Systems 2 - 18 GHz
Product Code:
HPASC042
Condition:
New
Availability:
10 - 12 Weeks
Weight:
20.00 KGS
$35,302.22
| KEY SPECIFICATIONS | |
| Gain Min | 43 dB |
| Input Frequency Band 1 | 2 - 18 GHz |
| Number Of Bands | Single-Band |
| Output Psat Min | 43 dBm |
| Transmission Mode | Continuous Wave |
| RF SPECIFICATIONS | |
| ESD Sensitivity(Hbm) | Class 0, passed 150V |
| Harmonics | -10 dBc typ. |
| Input VSWR Max | 2.0 : 1 |
| RF Input Power | 10 dBm |
| Spurious | -60 dBc typ. |
| ELECTRICAL SPECIFICATIONS | |
| Control Functions | 1. Power setting On/Off; 2. ALC automatic level control |
| Impedance | 50 Ohms |
| Power Consumption | 400 Watts |
| Power Requirements | 220V AC |
| Protection Functions | 1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR |
| Supply Bias Voltage | 260V AC |
| INTERFACE SPECIFICATIONS | |
| AC Power Interface | Air switch |
| Communication Functions | RS422/Ethernet |
| Input Connector | SMA Female |
| Output Connector | SMA Female |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude | 50000 feet |
| Relative Humidity | 0.95 |
| Shock (Non Operating) | 20g for 11msc half sin wave, 3 axis both directions |
| Shock/Vibration (MIL-STD-810F) | 25g rms (15-degree 2KHz) endurance, 1 hour per axis |
| Temperature Operational | -20°C to +60°C |
| Temperature Storage | -45°C to +65°C |
| PHYSICAL SPECIFICATIONS | |
| Cooling System | Built in Cooling system, forced air cooliong |
| Product Dimensions | 19 Inch 2U x 485mm depth |
| Product Weight | 20 kg |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | 3A001.b.4.b.4 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517799000 |
| Unit Package Dimensions | 535 x 140 x 535 mm |
| Unit Package Weight | 22 kg |
| Warranty | 3 years |
