Norsat International Inc.

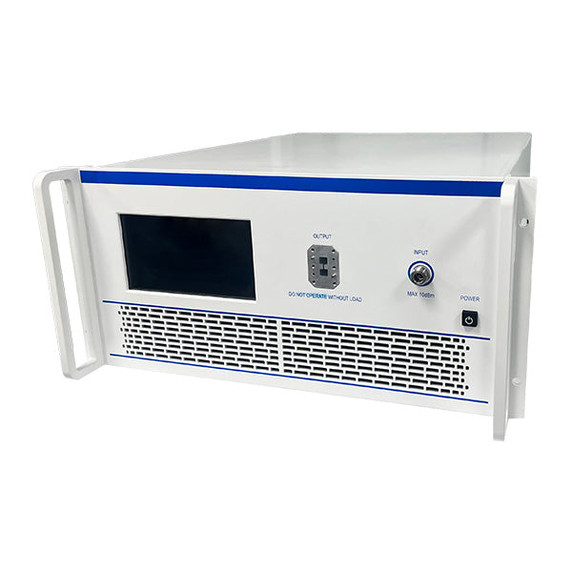

Norsat HPASC029 RF High Power Amplifier Systems 0.8 - 3 GHz
Product Code:
HPASC029
Condition:
New
Availability:
6 - 8 Weeks
Weight:
35.00 KGS
$90,797.78
| KEY SPECIFICATIONS | |
| Gain Min | 54 dB |
| Input Frequency Band 1 | 0.8 - 3 GHz |
| Number Of Bands | Single-Band |
| Output Psat Min | 54 dBm |
| Transmission Mode | Continuous Wave |
| RF SPECIFICATIONS | |
| ESD Sensitivity(Hbm) | Class 0, passed 150V |
| Gain Flatness Typ | ±3 dB |
| Harmonics | -10 dBc max.@Pout=54dBm |
| Input VSWR Max | 2.0 : 1 |
| Input VSWR Typ | 1.0 : 1 |
| Output P1db Typ | 50 dBm |
| RF Input Power | 10 dBm |
| Spurious | -60 dBc max.@Pout=54dBm |
| ELECTRICAL SPECIFICATIONS | |
| Control Functions | 1. Power setting On/Off; 2. ALC automatic level control |
| Impedance | 50 Ohms |
| Power Consumption | 1000Watts@max. |
| Power Requirements | 220 V AC |
| Protection Functions | 1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR |
| Supply Bias Voltage | TBD |
| INTERFACE SPECIFICATIONS | |
| Communication Functions | RS422/Ethernet, LCD Screen Display |
| Communication Interfaces | RJ-45 |
| Input Connector | N Female |
| Output Connector | N Female |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -20°C to +50°C |
| PHYSICAL SPECIFICATIONS | |
| Cooling System | Built in Cooling system, forced air cooliong |
| Product Dimensions | 19 lnch 5U mm |
| Product Weight | ≤ 35 kg |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517799000 |
| Unit Package Dimensions | - |
| Unit Package Weight | ≤38 kg |
| Warranty | 3 years |
