Norsat International Inc.

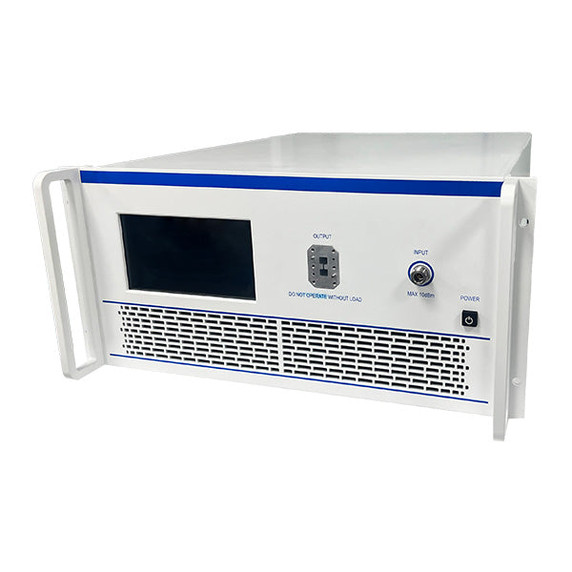

Norsat HPASC013 RF High Power Amplifier Systems 0.4 - 8 GHz
Product Code:
HPASC013
Condition:
New
Availability:
6 - 8 Weeks
Weight:
15.00 KGS
$29,928.89
| KEY SPECIFICATIONS | |
| Gain Min | 40 dB |
| Gain Typ | 43 dB |
| Input Frequency Band 1 | 0.4 - 8 GHz |
| Number Of Bands | Single-Band |
| Output Psat Min | 39 dBm |
| Output Psat Typ | 41 dBm |
| Transmission Mode | Continuous Wave |
| RF SPECIFICATIONS | |
| ESD Sensitivity(Hbm) | Class 0, passed 150V |
| Gain Flatness Max | ±5 dB |
| Gain Flatness Typ | ±3 dB |
| Harmonics | -10 dBc max. |
| Input VSWR Max | 2.0 : 1 |
| Input VSWR Typ | 1.5 : 1 |
| Output P1db Min | 38 dBm |
| Output P1db Typ | 40 dBm |
| RF Input Power | 5 dBm |
| Spurious | -60 dBc max. |
| ELECTRICAL SPECIFICATIONS | |
| Control Functions | 1. Power setting On/Off; 2. Gain adjustment |
| Current Consumption | 5A |
| Impedance | 50 Ohms |
| Power Requirements | 220 V AC typ. 110 V AC min. |
| Protection Functions | 1. Over TEM; 2. Over voltage; 3. Over current protection |
| INTERFACE SPECIFICATIONS | |
| Input Connector | N Female |
| Output Connector | N Female |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -45°C to +50°C |
| PHYSICAL SPECIFICATIONS | |
| Cooling System | Built in Cooling system, forced air cooliong |
| Product Dimensions | 3U x 550 depth |
| Product Weight | 15 kg |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517799000 |
| Unit Package Dimensions | 535 x 185 x 600 mm |
| Unit Package Weight | 17 kg |
| Warranty | 3 years |
