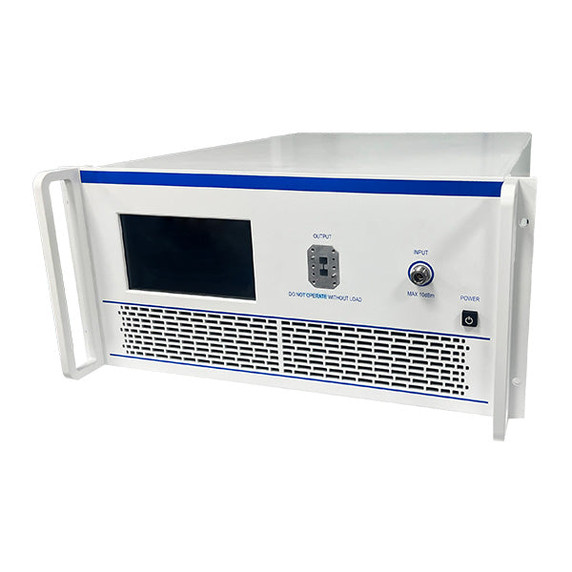

Norsat HPASC006 RF High Power Amplifier Systems 3 - 30 MHz
Product Code:
HPASC006
Condition:
New
Availability:
10 - 12 Weeks
Weight:
25.00 KGS
$18,171.11
| KEY SPECIFICATIONS | |
| Gain Min | 53 dB |
| Gain Typ | 55 dB |
| Input Frequency Band 1 | 3 - 30 MHz |
| Number Of Bands | Single-Band |
| Output Psat Min | 53.01 dBm |
| Output Psat Typ | 53.98 dBm |
| Transmission Mode | Continuous Wave |
| RF SPECIFICATIONS | |
| ESD Sensitivity(Hbm) | Class 0, passed 150V |
| Gain Flatness Max | ±3 dB |
| Gain Flatness Typ | ±2 dB |
| Harmonics | -15 dBc |
| Input VSWR Max | 2.0 : 1 |
| Input VSWR Typ | 1.5 : 1 |
| Output P1db Typ | 50 dBm |
| RF Input Power | 5 dBm |
| Spurious | -60 dBc |
| ELECTRICAL SPECIFICATIONS | |
| Control Functions | 1. Power setting On/Off; 2. ALC automatic level control |
| Impedance | 50 Ohms |
| Power Consumption | 800Watts@max. |
| Power Requirements | 220V AC typ. 110V AC min. |
| Protection Functions | 1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR |
| INTERFACE SPECIFICATIONS | |
| Communication Functions | RS422/Ethernet |
| Input Connector | N Female |
| Output Connector | N Female |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude | 15000 feet |
| Relative Humidity | 0.95 |
| Shock (Non Operating) | 20g for 11msc half sin wave, 3 axis both directions |
| Shock/Vibration (MIL-STD-810F) | 25g rms (15-degree 2KHz) endurance, 1 hour per axis |
| Temperature Operational | 0°C to +50°C |
| Temperature Storage | -40°C to +85°C |
| PHYSICAL SPECIFICATIONS | |
| Cooling System | Built in Cooling system, forced air cooliong |
| Product Dimensions | 482.6 x 133.2 x 447 mm |
| Product Weight | 25 kg |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517799000 |
| Unit Package Dimensions | 535 x 185 x 500 mm |
| Unit Package Weight | 29 kg |
| Warranty | 3 years |
