Norsat International Inc.

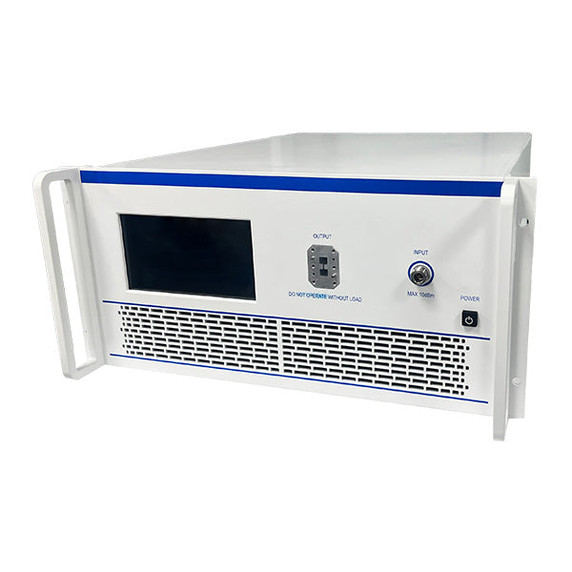

Norsat HPASC002 RF High Power Amplifier Systems 0.3 - 0.5 MHz
Product Code:
HPASC002
Condition:
New
Availability:
6 - 8 Weeks
Weight:
10.00 KGS
$14,444.44
| KEY SPECIFICATIONS | |
| Gain Min | 50 dB |
| Gain Typ | 52 dB |
| Input Frequency Band 1 | 0.3 - 0.5 MHz |
| Number Of Bands | Single-Band |
| Output Psat Min | 49 dBm |
| Output Psat Typ | 50 dBm |
| Transmission Mode | Continuous Wave |
| RF SPECIFICATIONS | |
| ESD Sensitivity(Hbm) | Class 0, passed 150V |
| Gain Flatness Max | ±1 dB |
| Gain Flatness Typ | ±0.5 dB |
| Harmonics | -15 dBc |
| Input VSWR Max | 2.0 : 1 |
| Input VSWR Typ | 1.5 : 1 |
| Output P1db Min | 47 dBm |
| Output P1db Typ | 48 dBm |
| RF Input Power | 10 dBm |
| Spurious | -60 dBc |
| ELECTRICAL SPECIFICATIONS | |
| Control Functions | 1. Power setting On/Off; 2. ALC automatic level control |
| Current Consumption | 3A |
| Impedance | 50 Ohms |
| Power Requirements | 220V AC typ. 110V AC min. |
| Protection Functions | 1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR |
| INTERFACE SPECIFICATIONS | |
| Communication Functions | DB15(TTL) |
| Input Connector | N Female |
| Output Connector | N Female |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -45°C to +50°C |
| PHYSICAL SPECIFICATIONS | |
| Cooling System | Built in Cooling system, forced air cooliong |
| Product Dimensions | 3U x 500 depth mm |
| Product Weight | 10 kg |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517799000 |
| Unit Package Dimensions | 535 x 185 x 500 mm |
| Unit Package Weight | 13 kg |
| Warranty | 3 years |
