Norsat International Inc.

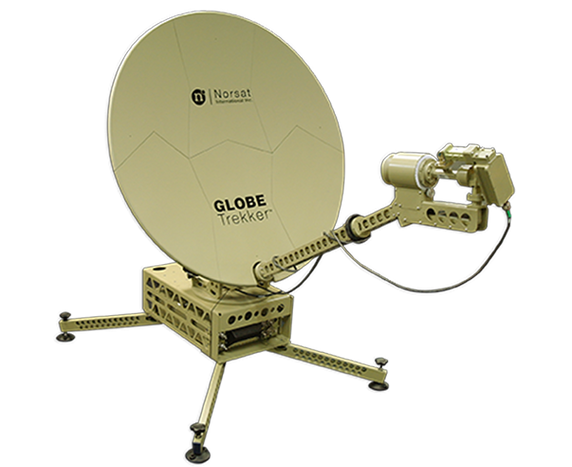

Norsat GT100KUE0200 Serial No. 90297 - DEMO
The GLOBETrekker™ 2.0 is the world’s most intelligent fly-away satellite terminal. With a modular architecture that enables easy component swapping in the field, a simple one touch interface, and intelligent LinkControl™ software for automatic satellite acquisition, the GLOBETrekker is both powerful and easy to use. Built to military specifications, with a suite of integrated modems or video encoders, and lightweight packaging compact enough for airline check in, operators rely on the GLOBETrekker for mission critical communications anywhere on the planet.
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.0m |
| Band | Ku-Band |
| ANTENNA SPECIFICATIONS | |
| Azimuth Angle | >±160°, Motorized, (resolution <0.1°) |
| Cross Polarization Isolation | 30 dB on axis |
| Elevation Angle | 5° to 90°, Motorized, (resolution <0.1°) |
| Movement Overrides | Manual (Azimuth/Elevation/Polarization) |
| Movement Platform | Motorized Elevation over Azimuth |
| Polarization | Linear Cross-Pol |
| Primary Antenna Power | 24V DC; AC 110/220 VAC; 50/60 Hz (Stable to 90 VAC) |
| Standard BUC Options | ATOMBKU025E1H |
| Standard LNB Options | 1208HUN |
| RF SPECIFICATIONS | |
| EIRP | 53.4 dBW |
| G/T | 17.6 dB/K |
| Rx Frequency | 10.70 - 12.75 GHz |
| Rx Gain | >39.0 dBi |
| Tx Frequency | 13.75 - 14.50 GHz |
| Tx Gain | >41.0 dBi |
| ENVIRONMENTAL SPECIFICATIONS | |
| Blowing Dust And Sand | Meets MIL-STD-810G |
| Blowing Wind And Rain | Meets MIL-STD-810G |
| Drop And Topple | Meets MIL-STD-810G |
| Free Fall | Meets MIL-STD-810G |
| Humidity | 5 - 95% condensing |
| Rainfall Operational | 102 mm/h, meets MIL-STD-810G |
| Rainfall Survival | 360 mm/h, meets MIL-STD- 810G |
| Salt Mist | Meets MIL-STD-810G |
| Shock | Meets MIL-STD-810G |
| Temperature Operational | -30 to +55°C, meets MIL-STD-810G |
| Temperature Storage | -40 to +70°C, meets MIL-STD-810G |
| Temperature Survival | -40 to +70°C, meets MIL-STD-810G |
| Transit Drop | Meets MIL-STD-810G |
| Vibration | Meets MIL-STD-810G |
| Vibration Loose Cargo | Meets MIL-STD-810G |
| Vibration Random | Meets MIL-STD-810G |
| Weatherproofing | Meets MIL-STD-810G |
| Wind Load Operational | 50 km/h |
| Wind Load Survival | 100 km/h |
| PHYSICAL SPECIFICATIONS | |
| Number Of Cases | 3 IATA Cases |
| Packaging | 3 IATA Compliant cases (<32 kg each). |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
