Norsat International Inc.

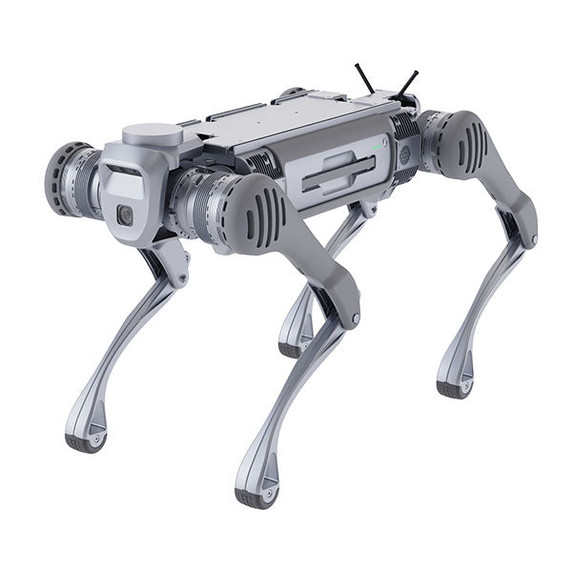

Norsat GQR0440 Intelligent Quadruped Robot - Industrial Model
Product Code:
GQR0440
Condition:
New
Availability:
10 - 12 Weeks
Weight:
60.00 KGS
$111,006.00
| KEY SPECIFICATIONS | |
| Battery Life | 4 - 6 h |
| Climbing Ability | Climb up and down stairs of 40cm in forward direction |
| Climbing Angle | > 45° |
| Continuous Stair Climbing | Stairs of 20-25 cm |
| Ditch Jumping Width | 0.5 - 1.2 m |
| Max Jump Distance | >1.6 m |
| Max Speed | 6 m/s |
| Running Speed | 3 m/s |
| Standing Load | 120 kg max. |
| Walking Load | > 40 kg |
| ELECTRICAL SPECIFICATIONS | |
| Battery Capacity | 45 Ah (2250 Wh) |
| Battery Voltage | 58 V |
| Endurance Ability | Walking without load > 5h, and the mileage > 20km; Walking with 20kg load > 4h, and the mileage> 15km |
| INTERFACE SPECIFICATIONS | |
| External Interface | 1000M-Base-Ethernet x 4 USB 3.0 x 4; 12V x 4, 5V x 1, 24V x 4, BAT x 1 |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -20°C to +55°C |
| PHYSICAL SPECIFICATIONS | |
| Control And Perception | Standard Configuration: Intel Core i5 (Platform Function), Intel Core i7 (User Development); Optional Configuration: Intel Core i7 and Jetson Orin NX (Maximum up to 3 devices) |
| Lying Prone Height | 330 mm |
| Lying Prone Length | 880 mm |
| Lying Prone Width | 460 mm |
| Max Joint Torque | About 360 N.m |
| Product Weight | 60 kg (battery included) |
| Sensing Sensor | Depth camera ×2 + Optical camera ×2 (Varies with different configurations) |
| Standing Height | 645 mm |
| Standing Length | 1098 mm |
| Standing Width | 450 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.9 kg |
| Aluminium Total Value | $ 2.25 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8543709990 |
| Unit Package Dimensions | 1050 x 650 x 740 mm |
| Unit Package Weight | 118 kg |
| Warranty | 1 year |
