Norsat International Inc.

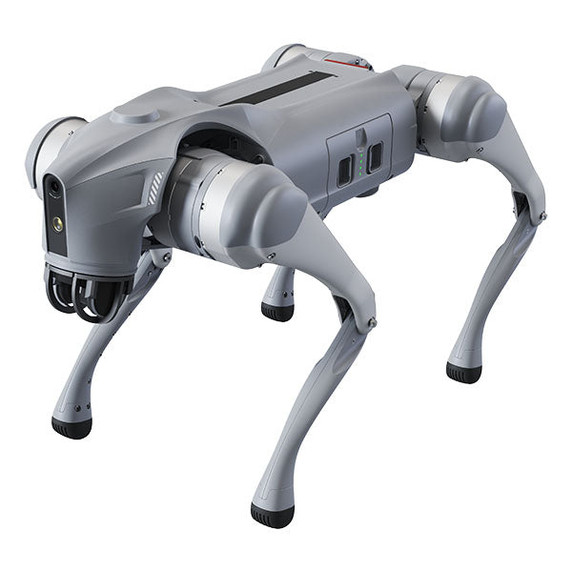

Norsat GQR0116 Intelligent Quadruped Robot - Special Edition
Product Code:
GQR0116
Condition:
New
Availability:
10 - 12 Weeks
Weight:
15.00 KGS
$0.00
| KEY SPECIFICATIONS | |
| Battery Life | 2 - 4 h |
| Climbing Angle | 40° |
| Max Climb Drop Height | about 16 cm |
| Payload | 12 kg max. |
| Range Of Motion Body | -48 - 48° |
| Range Of Motion Shank | -156° - -48° |
| Range Of Motion Thigh | -200° - 90° |
| Speed | 0 - 3.7 m/s (5 m/s max) |
| ELECTRICAL SPECIFICATIONS | |
| Basic Computing Power | 8-core high-performance CPU |
| Battery Capacity | 15000 mAh |
| Battery Voltage | 28 - 33.6 V |
| Charger | fast charge (33.6V 9A) |
| Endurance Ability | long endurance |
| High Computing Power Module | NVIDIA Jetson Orin (optiona) 40-100Topscomputing power |
| Max Working Power | 3000 W |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | 10°C to 40°C |
| PHYSICAL SPECIFICATIONS | |
| Aluminum Knee Joint Moter | 12 sets |
| Key Features | Basic action, upgraded intelligent OTA, RTT 2.0 pictures transaction, graphical programme, front lamp, WiFi6 with Dual-band, bluetooth 5.2/4.2/2.1, 4G module, voice function, ISS 2.0 intelligent side-follow system, intelligent detection and avoidance, charging pile compatibility, secondary development, manual controller |
| Lidar | Super-wide-angle 3D LIDAR included |
| Lying Prone Height | 200 mm |
| Lying Prone Length | 760 mm |
| Lying Prone Width | 310 mm |
| Material | Aluminium alloy + High strength engineering plastic |
| Max Joint Torque | 45 N.m |
| Product Weight | 15 kg (battery included) |
| Sensing Sensor | included |
| Standing Height | 400 mm |
| Standing Length | 700 mm |
| Standing Width | 310 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.9 kg |
| Aluminium Total Value | $ 2.25 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8543709990 |
| Warranty | 1 year |
