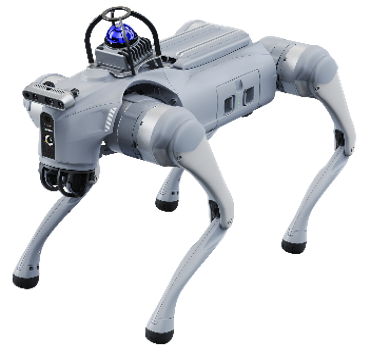

Product image for Intelligent Quadruped Robot - Special Edition, 3D LIDAR, Camera with Depth and Edge AI Processor

Zoom the image with the mouse

Norsat International Inc.

Norsat GQR-100001 Intelligent Quadruped Robot - Special Edition, 3D LIDAR, Camera with Depth and Edge AI Processor

Name: Norsat GQR-100001 Intelligent Quadruped Robot - Special Edition, 3D LIDAR, Camera with Depth and Edge AI Processor
Brand: Norsat International Inc.
SKU: GQR-100001
Availability: OutOfStock

No reviews yet

Product Code: GQR-100001

Condition: New

Availability: 10 - 12 Weeks

Weight: 15.00 KGS

Request a quote at Contact@orbitalconnect.com or +1.888.218.9394

KEY SPECIFICATIONS
Audio	Microphone, speaker and lights with real time feedback
Controller	Handheld remote control
Data Management	APP high-definition image transmission, remote control, data viewing, APP graphical programme
Movement	Intelligent detection and avoidance, wireless vector positioning and control system
Network And Storage	4G communication, built-in eSIM, smart OTA upgrade
Supported Features	Foot Sensors Secondary Development Charging Pile Compatibility
Voice Recognition Module	Millisecond-level voice interaction response using industry-leading voice recognition technology. High recognition accuracy and fast literacy.
ELECTRICAL SPECIFICATIONS
Battery	Battery Life: 2 - 4 h Capacity: 15000 mAh Battery modules are easily swappable.
Bluetooth	Bluetooth 5.2/4.2/2.1
Depth Camera	RealSense D435i depth camera
Edge AI Processor	Dock with 100Tops (NVIDIA Orin NX) mega-computing power with AI algorithms
Lidar	3D LIDAR with navigation algorithms Part Number: EPT001 Acquisition Range: ≤ 40m Maximum Point Cloud Rate: 200,000 Points per second Minimum Blind Distance: 0.1 - 0.5m Dimensions (LxWxH): 180 mm x 160 mm x 80 mm Weight: 0.85 kg Standard Configuration: Modular Environmental Preceptor ×1 (including LiDAR, microcomputer, and real-time rendering algorithm software) Quick-release Plate
WI-FI	WIFI6 dual-band wireless 802.11ax
INTERFACE SPECIFICATIONS
Payload	Output Power: 16V-60V Ports: 1x USB3.0 Type A 1x USB2.0 Type C 1x USB3.0 Type C 2x Gigabit Ethernet ports (standard RJ45) 1x 100Gb Ethernet (GH1.25-4PIN) 1x M8 air plug interface
ENVIRONMENTAL SPECIFICATIONS
Temperature Operational	10°C to 40°C
PHYSICAL SPECIFICATIONS
Climbing Angle	40° max.
Load	About 8 kg (limit: 10 kg)
Max Climb Drop Height	About 16 cm
Product Weight	15 kg (battery included)
Range Of Motion Body	-48 to 48°
Range Of Motion Calf	-156° to -48°
Range Of Motion Thigh	-200° to 90°
Speed	0 - 13.3 km/hr (18 km/hr max)
Standing Height	400 mm
Standing Length	700 mm
Standing Width	310 mm
ADDITIONAL INFORMATION
Aluminium Content	0.9 kg
Aluminium Total Value	$ 2.25
Country Of Origin	Made in China
ECCN Number	EAR99
Ex Works	Richmond, BC, Canada
Harmonized System Code	8543709990
Warranty	1 year
