Norsat International Inc.

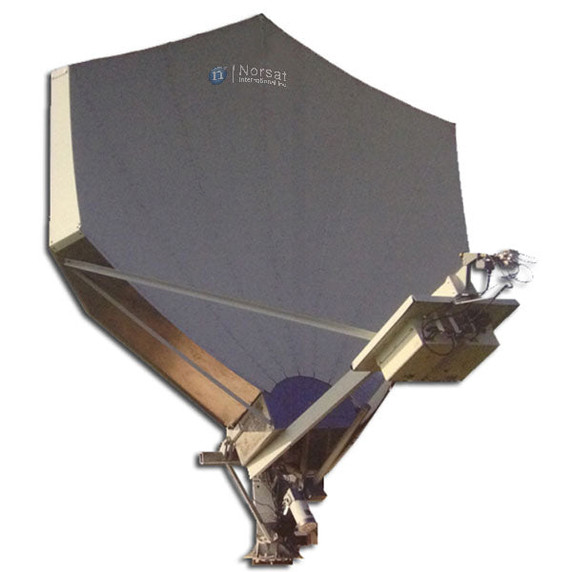

Norsat ESS380KUK01-K ANCHOR 3.8m Ku-band Single Offset TxRx Antenna system Kit
Product Code:
ESS380KUK01-K
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Width:
3,800.00
(cm)
Height:
600.00
(cm)
Depth:
400.00
(cm)
$74,500.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 3.8m |
| Antenna Category | Earth Station |
| Band | Ku-band Linear |
| Number Of Onboard Los | Single-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Function | Transmit / Receive |
| Antenna Mount | Kingpost mount |
| Antenna Mount Type | Elevation over Azimuth |
| Antenna Structure | Single Offset |
| Azimuth Angle | 360° (Continuous Adjustment) |
| Elevation Angle | 0° to 90° (Continuous Fine Adjustment) |
| Noise Temperature@ 10.7 Ghz Receive 10-Degree Elevation Unity | 62K |
| Noise Temperature@ 10.7 Ghz Receive 20-Degree Elevation Unity | 52K |
| Noise Temperature@ 10.7 Ghz Receive 30-Degree Elevation Unity | 48K |
| RF SPECIFICATIONS | |
| Rx Frequency | 10.7 - 12.75 GHz |
| RX Gain | 51.2 dBi @ 11.725 |
| RX Interface | WR75 |
| Tx Frequency | 13.75 - 14.5 GHz |
| TX Gain | 53.2 dBi @ 14.125 |
| TX Interface | WR75 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -20°C to +125°C / -28.9°C to +51.7°C |
| Windspeed Operational | No Ballast/Anchors: 45 mph / 72Kmh |
| Windspeed Survival | With Ballast/Anchors: 100 Mph / 160 Kmh |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 6000 mm |
| Product Length | 4000 mm |
| Product Width | 38000 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in USA |
| ECCN Number | EAR99 |
| FCC ID | N/A |
| Harmonized System Code | 8529102120 |
| Number Of Packages | 2 |
| Unit Package Dimensions | 4876.8 x 1295.4 x 2082.8 mm |
| Unit Package Weight | 870.1 kg |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Antenna Aperture | 3.8m |
| Antenna Category | Earth Station |
| Band | Ku-band Linear |
| Number Of Onboard Los | Single-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Function | Transmit / Receive |
| Antenna Mount | Kingpost mount |
| Antenna Mount Type | Elevation over Azimuth |
| Antenna Structure | Single Offset |
| Azimuth Angle | 360° (Continuous Adjustment) |
| Elevation Angle | 0° to 90° (Continuous Fine Adjustment) |
| Noise Temperature@ 10.7 Ghz Receive 10-Degree Elevation Unity | 62K |
| Noise Temperature@ 10.7 Ghz Receive 20-Degree Elevation Unity | 52K |
| Noise Temperature@ 10.7 Ghz Receive 30-Degree Elevation Unity | 48K |
| RF SPECIFICATIONS | |
| Rx Frequency | 10.7 - 12.75 GHz |
| RX Gain | 51.2 dBi @ 11.725 |
| RX Interface | WR75 |
| Tx Frequency | 13.75 - 14.5 GHz |
| TX Gain | 53.2 dBi @ 14.125 |
| TX Interface | WR75 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -20°C to +125°C / -28.9°C to +51.7°C |
| Windspeed Operational | No Ballast/Anchors: 45 mph / 72Kmh |
| Windspeed Survival | With Ballast/Anchors: 100 Mph / 160 Kmh |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 6000 mm |
| Product Length | 4000 mm |
| Product Width | 38000 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in USA |
| ECCN Number | EAR99 |
| FCC ID | N/A |
| Harmonized System Code | 8529102120 |
| Number Of Packages | 2 |
| Unit Package Dimensions | 4876.8 x 1295.4 x 2082.8 mm |
| Unit Package Weight | 870.1 kg |
| Warranty | 1 year |
