Norsat International Inc.

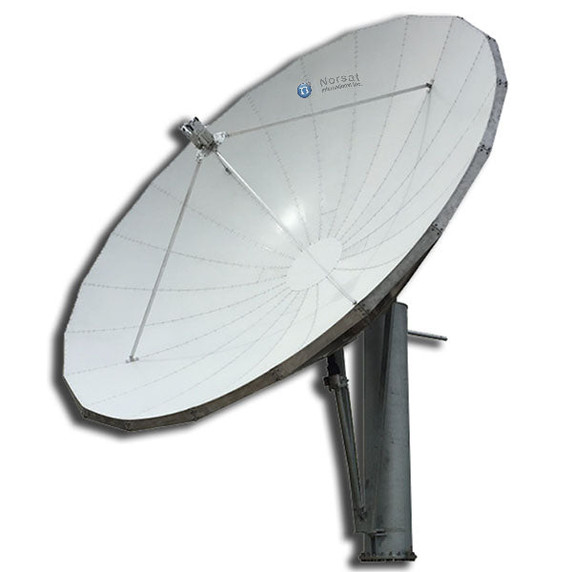

Norsat ESP750CKUK01 ANCHOR 7.5m Prime Focus CKU-Band Az-El Antenna
Product Code:
ESP750CKUK01
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Width:
34.50
(cm)
Height:
760.00
(cm)
Depth:
750.00
(cm)
$224,500.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 7.5m |
| Antenna Category | Earth Station |
| Band | C-band & KU-band Linear |
| Number Of Onboard Los | Dual-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Function | Receive-Only |
| Antenna Mount | Kingpost |
| Antenna Mount Type | Elevation over Azimuth |
| Antenna Structure | Prime Focus |
| Azimuth Angle | 120° (Standard Adjustment) |
| Elevation Angle | 0° to 90° (Standard Adjustment) |
| Noise Temperature@ 10.7 Ghz Receive 10-Degree Elevation Unity | Ku-band = 50 C-Band = 45 |
| RF SPECIFICATIONS | |
| Rx Frequency | Ku-band = 10.95 - 12.75 C-Band = 3.625 – 4.2 GHz |
| RX Gain | Ku-band = 57 dBi C-Band = 47.9 dBi |
| RX Interface | Ku-band = WR75 C-Band = CPR 229G |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -5°C to +122°C / -15°C to +50°C |
| Temperature Survival | -22°C to +140°C / -30°C to +60°C |
| Windspeed Operational | No Ballast/Anchors: 45 mph / 72 kmh (Gusts up to 60 mph / 97 kmh) |
| Windspeed Survival | With Ballast/Anchors: 125 mph / 200 kmh |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 7600 mm |
| Product Length | 7500 mm |
| Product Width | 345 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in USA |
| ECCN Number | EAR99 |
| FCC ID | N/A |
| Harmonized System Code | 8529102120 |
| Number Of Packages | 4 |
| Unit Package Dimensions | 3683 x 1117.6 x 1498.6 mm |
| Unit Package Weight | 961.7 kg |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Antenna Aperture | 7.5m |
| Antenna Category | Earth Station |
| Band | C-band & KU-band Linear |
| Number Of Onboard Los | Dual-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Function | Receive-Only |
| Antenna Mount | Kingpost |
| Antenna Mount Type | Elevation over Azimuth |
| Antenna Structure | Prime Focus |
| Azimuth Angle | 120° (Standard Adjustment) |
| Elevation Angle | 0° to 90° (Standard Adjustment) |
| Noise Temperature@ 10.7 Ghz Receive 10-Degree Elevation Unity | Ku-band = 50 C-Band = 45 |
| RF SPECIFICATIONS | |
| Rx Frequency | Ku-band = 10.95 - 12.75 C-Band = 3.625 – 4.2 GHz |
| RX Gain | Ku-band = 57 dBi C-Band = 47.9 dBi |
| RX Interface | Ku-band = WR75 C-Band = CPR 229G |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -5°C to +122°C / -15°C to +50°C |
| Temperature Survival | -22°C to +140°C / -30°C to +60°C |
| Windspeed Operational | No Ballast/Anchors: 45 mph / 72 kmh (Gusts up to 60 mph / 97 kmh) |
| Windspeed Survival | With Ballast/Anchors: 125 mph / 200 kmh |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 7600 mm |
| Product Length | 7500 mm |
| Product Width | 345 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in USA |
| ECCN Number | EAR99 |
| FCC ID | N/A |
| Harmonized System Code | 8529102120 |
| Number Of Packages | 4 |
| Unit Package Dimensions | 3683 x 1117.6 x 1498.6 mm |
| Unit Package Weight | 961.7 kg |
| Warranty | 1 year |
