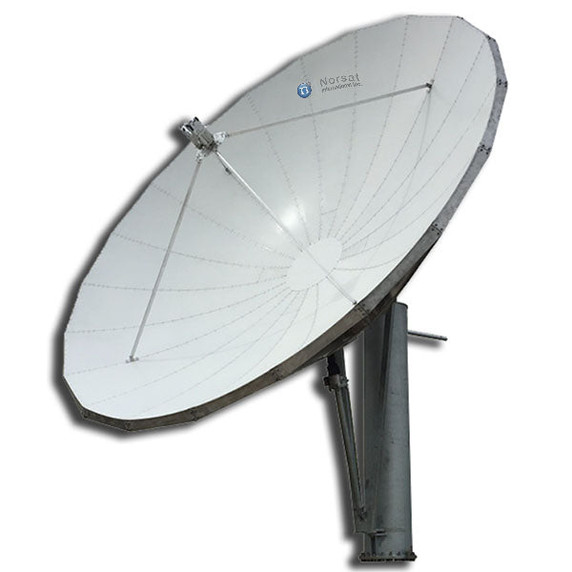

Norsat ESP630CK02 ANCHOR 6.3m Prime Focus C-Band Az-El Antenna
Product Code:
ESP630CK02
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Width:
34.50
(cm)
Height:
640.00
(cm)
Depth:
630.00
(cm)
$259,000.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 6.3m |
| Antenna Category | Earth Station |
| Band | C-band Linear |
| ANTENNA SPECIFICATIONS | |
| Antenna Function | Receive-Only |
| Antenna Mount | Kingpost |
| Antenna Mount Type | Elevation over Azimuth |
| Antenna Structure | Prime Focus |
| Azimuth Angle | 120° (Standard Adjustment) |
| Elevation Angle | 0° to 90° (Continuous Fine Adjustment) |
| Noise Temperature@ 10.7 Ghz Receive 10-Degree Elevation Unity | 48K |
| Number Of Onboard Los | Single-Band |
| RF SPECIFICATIONS | |
| Rx Frequency | 3.625 - 4.2 GHz |
| RX Gain | 46.4 dBi |
| RX Interface | CPR 229G |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -5°C to +122°C / -15°C to +50°C |
| Temperature Survival | -22°C to +140°C / -30°C to +60°C |
| Windspeed Operational | No Ballast/Anchors: 45 mph / 72 kmh (Gusts up to 60 mph / 97 kmh) |
| Windspeed Survival | With Ballast/Anchors: 125 mph / 200 kmh |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 6400 mm |
| Product Length | 6300 mm |
| Product Width | 345 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in USA |
| ECCN Number | EAR99 |
| FCC ID | N/A |
| Harmonized System Code | 8529102120 |
| Number Of Packages | 4 |
| Unit Package Dimensions | 3784.6 x 1143 x 1447.8 mm |
| Unit Package Weight | 775.7 kg |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Antenna Aperture | 6.3m |
| Antenna Category | Earth Station |
| Band | C-band Linear |
| ANTENNA SPECIFICATIONS | |
| Antenna Function | Receive-Only |
| Antenna Mount | Kingpost |
| Antenna Mount Type | Elevation over Azimuth |
| Antenna Structure | Prime Focus |
| Azimuth Angle | 120° (Standard Adjustment) |
| Elevation Angle | 0° to 90° (Continuous Fine Adjustment) |
| Noise Temperature@ 10.7 Ghz Receive 10-Degree Elevation Unity | 48K |
| Number Of Onboard Los | Single-Band |
| RF SPECIFICATIONS | |
| Rx Frequency | 3.625 - 4.2 GHz |
| RX Gain | 46.4 dBi |
| RX Interface | CPR 229G |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -5°C to +122°C / -15°C to +50°C |
| Temperature Survival | -22°C to +140°C / -30°C to +60°C |
| Windspeed Operational | No Ballast/Anchors: 45 mph / 72 kmh (Gusts up to 60 mph / 97 kmh) |
| Windspeed Survival | With Ballast/Anchors: 125 mph / 200 kmh |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 6400 mm |
| Product Length | 6300 mm |
| Product Width | 345 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in USA |
| ECCN Number | EAR99 |
| FCC ID | N/A |
| Harmonized System Code | 8529102120 |
| Number Of Packages | 4 |
| Unit Package Dimensions | 3784.6 x 1143 x 1447.8 mm |
| Unit Package Weight | 775.7 kg |
| Warranty | 1 year |
