Norsat International Inc.

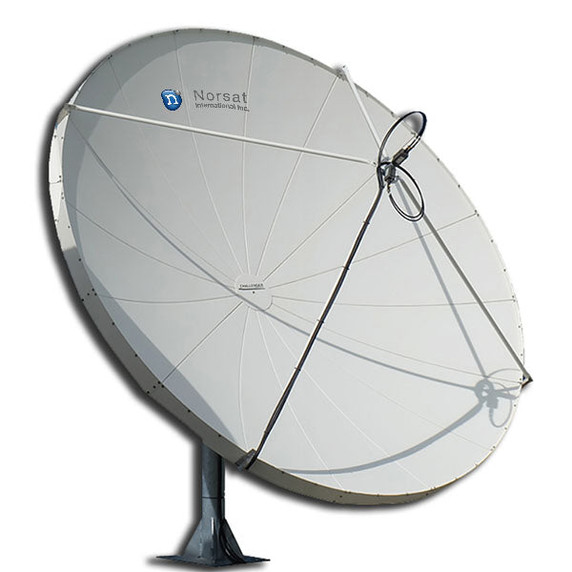

Norsat ESP380CKUK01 ANCHOR 3.8m Prime Focus CKU-Band Az-El Antenna
Product Code:
ESP380CKUK01
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Width:
31.50
(cm)
Height:
390.00
(cm)
Depth:
380.00
(cm)
$20,900.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 3.8m |
| Antenna Category | Earth Station |
| Band | C-band & KU-band Linear |
| Number Of Onboard Los | Dual-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Function | Receive-Only |
| Antenna Mount | Kingpost |
| Antenna Mount Type | Elevation over Azimuth |
| Antenna Structure | Prime Focus |
| Azimuth Angle | 360° (Continuous Adjustment) |
| Elevation Angle | 5° to 90° (Continuous Fine Adjustment) |
| Noise Temperature@ 10.7 Ghz Receive 10-Degree Elevation Unity | Ku-band = 55 C-Band = 50 |
| RF SPECIFICATIONS | |
| Rx Frequency | Ku-band = 10.95 - 12.75 C-Band = 3.625 – 4.2 GHz |
| RX Gain | Ku-band = 50.3 dBi C-Band = 41.5 dBi |
| RX Interface | Ku-band = WR75 C-Band = CPR 229G |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +140°C / -40°C to +60°C |
| Temperature Survival | -60°C to +180°C / -51°C to +82°C |
| Windspeed Operational | No Ballast/Anchors: 60 mph / 100 kmh |
| Windspeed Survival | With Ballast/Anchors: 125 mph / 200 kmh |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 3900 mm |
| Product Length | 3800 mm |
| Product Width | 315 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in USA |
| ECCN Number | EAR99 |
| FCC ID | N/A |
| Harmonized System Code | 8529102120 |
| Number Of Packages | 1 |
| Unit Package Dimensions | 2235 x 915 x 762 mm |
| Unit Package Weight | 316.8 kg |
| Warranty | 1 year |
