Norsat International Inc.

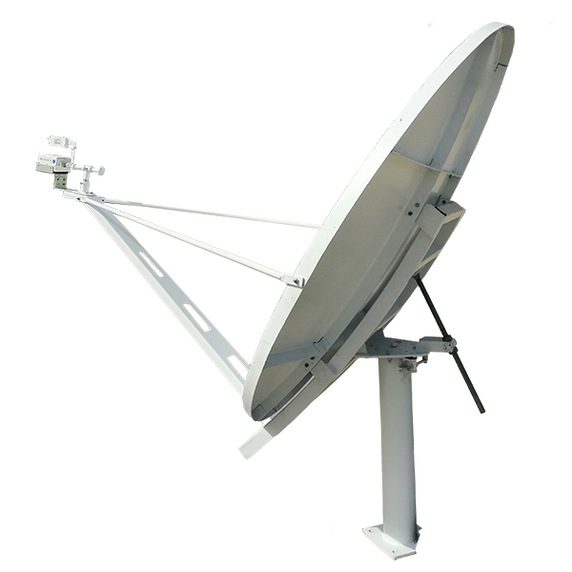

Norsat ESES180KU2 ANCHOR 1.8m Ku-Band Earth Station Antenna

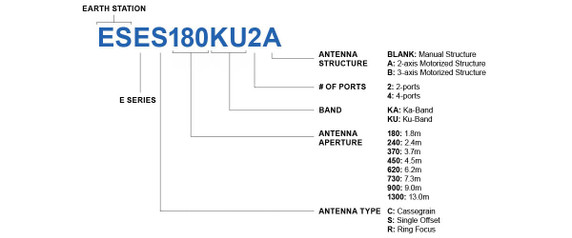

Product Code:
ESES180KU2
Condition:
New
Availability:
10 - 12 Weeks
Weight:
100.00 KGS
Width:
195.00
(cm)
Height:
205.00
(cm)
Depth:
52.00
(cm)
$4,445.00
Please note: Installation services are not included with this product.
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.8m |
| Band | Ku-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Drive Mode | manual structure antenna |
| Antenna Type | Single Offset |
| Number Of Ports | 2-ports |
| Polarization | Linear |
| Rx Axis Ratio | ≤35 dB |
| Sidelobe | 29 - 25 logθ(1°≤θ＜20°) |
| Tx Axis Ratio | ≤35 dB |
| RF SPECIFICATIONS | |
| Noise Temperature Elevation 10° | 43 K |
| Noise Temperature Elevation 20° | 36 K |
| Noise Temperature Elevation 40° | 32 K |
| Port Isolation Rx-Tx | 85 dB |
| Rx Feed Insertion Loss | ≤0.2 dB |
| Rx Frequency | 10.70 ‐ 12.75 GHz |
| Rx Gain | 45.22 dBi @ 12.5GHz |
| Rx VSWR | 1.25 : 1 |
| Tx Feed Insertion Loss | ≤0.2 dB |
| Tx Frequency | 13.75 ‐ 14.50 GHz |
| Tx Gain | 46.6 dBi @ 12.25GHz |
| Tx VSWR | 1.25 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Capacity | 2 KW |
| INTERFACE SPECIFICATIONS | |
| Rx Interface | WR-75 |
| Tx Interface | WR-75 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 1.0 |
| Ice Load | Icing 13mm: normal work; Icing 25mm: no damage |
| Seismic Capacity Horizontal | 0.3 G |
| Seismic Capacity Vertical | 0.1 G |
| Temperature Operational | -30°C to +50°C |
| Windspeed Operational | 72 km/h |
| Windspeed Survival | 216 km/h |
| PHYSICAL SPECIFICATIONS | |
| Motion Range AZ | 0° - 360° (continuous) |
| Motion Range EL | 5° - 90° |
| Motion Range POL | ±90° |
| Product Height Case 1 | 520 mm |
| Product Height Case 2 | 535 mm |
| Product Length Case 1 | 2050 mm |
| Product Length Case 2 | 1155 mm |
| Product Width Case 1 | 1950 mm |
| Product Width Case 2 | 450 mm |
| RMS | ≤0.5 mm |
| Structure | EL Over AZ |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | 5A991.B |
| Ex Works | Hong Kong |
| Harmonized System Code | 8529109090 |
| Warranty | 1 year |
