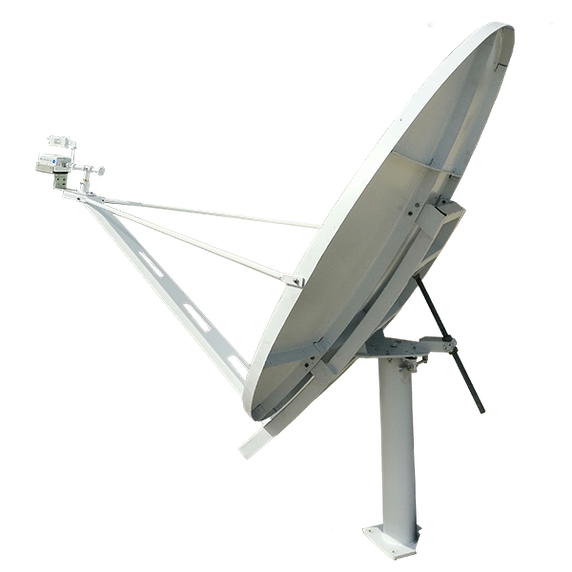

Norsat ESES180KA2 ANCHOR 1.8m Ka-Band Earth Station Antenna

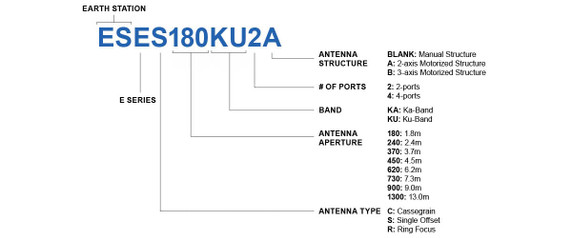

Product Code:
ESES180KA2
Condition:
New
Availability:
10 - 12 Weeks
Weight:
100.00 KGS
Width:
195.00
(cm)
Height:
205.00
(cm)
Depth:
52.00
(cm)
$8,612.00
Please note: Installation services are not included with this product.
| KEY SPECIFICATIONS | |
| Antenna Aperture | 1.8m |
| Band | Ka-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Drive Mode | manual structure antenna |
| Antenna Type | Single Offset |
| Number Of Ports | 2-ports |
| Polarization | Circular |
| Rx Axial Ratio 2 Ports | 1.5 dB |
| Rx CPI On Axis | ≤35 dB |
| Sidelobe | 29 - 25 logθ(1°≤θ＜20°) |
| Tx Axial Ratio 2 Ports | 1.5 dB |
| Tx CPI On Axis | ≤35 dB |
| RF SPECIFICATIONS | |
| Noise Temperature Elevation 10° | 126 K |
| Noise Temperature Elevation 20° | 85 K |
| Noise Temperature Elevation 40° | 80 K |
| Port Isolation Rx-Tx | 85 dB |
| Rx Feed Insertion Loss | 0.5 dB |
| Rx Frequency | 17.70 - 21.20 GHz |
| Rx Gain | 48.9 dBi @ 19.95GHz |
| Rx VSWR | 1.35 : 1 |
| Tx Feed Insertion Loss | 0.4 dB |
| Tx Frequency | 27.50 - 31.00 GHz |
| Tx Gain | 52.37 dBi @ 29.75GHz |
| Tx VSWR | 1.35 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Capacity | 2 KW |
| INTERFACE SPECIFICATIONS | |
| Rx Interface | WR-42 |
| Tx Interface | WR-28 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 1.0 |
| Ice Load | Icing 13mm: normal work; Icing 25mm: no damage |
| Seismic Capacity Horizontal | 0.3 G |
| Seismic Capacity Vertical | 0.1 G |
| Temperature Operational | -30°C to +50°C |
| Windspeed Operational | 72 km/h |
| Windspeed Survival | 216 km/h |
| PHYSICAL SPECIFICATIONS | |
| Motion Range AZ | 0° - 360° (continuous) |
| Motion Range EL | 5° - 90° |
| Motion Range POL | ±90° |
| Product Height Case 1 | 520 mm |
| Product Height Case 2 | 535 mm |
| Product Length Case 1 | 2050 mm |
| Product Length Case 2 | 1155 mm |
| Product Width Case 1 | 1950 mm |
| Product Width Case 2 | 450 mm |
| RMS | ≤0.3 mm |
| Structure | EL Over AZ |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | 5A991.B |
| Ex Works | Hong Kong |
| Harmonized System Code | 8529109090 |
| Warranty | 1 year |
