Norsat International Inc.

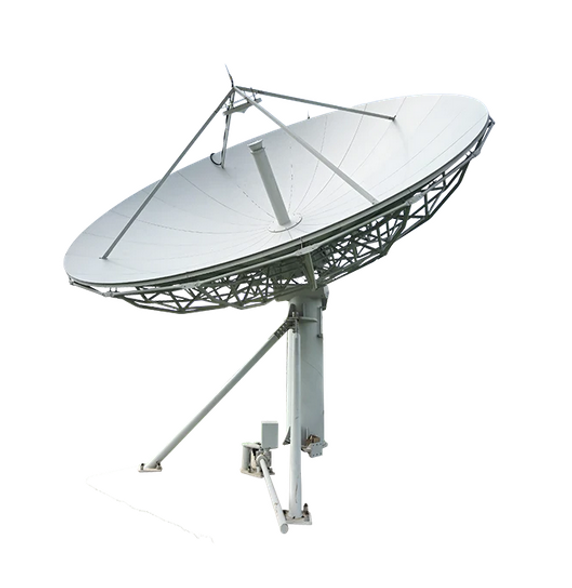

Norsat ESER730KA2A ANCHOR 7.3m Ka-Band Earth Station Antenna
Product Code:
ESER730KA2A
Weight:
5,210.00 KGS
$352,296.30
| KEY SPECIFICATIONS | |
| band | Ka-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Aperture | 7.3m |
| antenna drive mode | 2-axis motorized structure |
| antenna type | Ring Focus |
| number of ports | 2-ports |
| polarization | Circular |
| Rx axial ratio 2 ports | ≤1.5 dB |
| sidelobe | ≤-14dB; 29 - 25 logθ(1°≤θ＜20°) |
| Tx axial ratio 2 ports | ≤1.5 dB |
| RF SPECIFICATIONS | |
| noise temperature elevation 10° | 126.5 K |
| noise temperature elevation 20° | 87.8 K |
| noise temperature elevation 40° | 62 K |
| port isolation Rx-Tx | 85 dB |
| Rx feed insertion loss | ≤0.5 dB |
| Rx frequency | 17.70 - 21.20 GHz |
| rx gain | 61.37 @ 19.0GHz |
| Rx VSWR | 1.35 : 1 |
| Tx feed insertion loss | ≤0.6 dB |
| Tx frequency | 27.50 - 31.00 GHz |
| tx gain | 65.04 @ 29.0+GHz |
| Tx VSWR | 1.35 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| power capacity | 5 KW |
| INTERFACE SPECIFICATIONS | |
| Rx interface | WR-42 |
| Tx interface | WR-28 |
| ENVIRONMENTAL SPECIFICATIONS | |
| humidity | 1.0 |
| ice load | Icing 13mm: normal work; Icing 25mm: no damage |
| seismic capacity horizontal | 0.3 G |
| seismic capacity vertical | 0.1 G |
| temperature operational | -30 - 50℃ |
| windspeed operational | 72 km/h |
| windspeed survival | 216 km/h |
| PHYSICAL SPECIFICATIONS | |
| loading capacity | 1 set for 40GP container |
| motion range AZ | ±85°(Truss type), 5° - 355° continuous (turntable type) |
| motion range EL | 5° - 90° |
| motion range POL | ±90° |
| product package volume | 7 packages, dimension: 36.15 CBM |
| RMS | ≤0.3 mm |
| structure | LMC/ FMC |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| band | Ka-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Aperture | 7.3m |
| antenna drive mode | 2-axis motorized structure |
| antenna type | Ring Focus |
| number of ports | 2-ports |
| polarization | Circular |
| Rx axial ratio 2 ports | ≤1.5 dB |
| sidelobe | ≤-14dB; 29 - 25 logθ(1°≤θ＜20°) |
| Tx axial ratio 2 ports | ≤1.5 dB |
| RF SPECIFICATIONS | |
| noise temperature elevation 10° | 126.5 K |
| noise temperature elevation 20° | 87.8 K |
| noise temperature elevation 40° | 62 K |
| port isolation Rx-Tx | 85 dB |
| Rx feed insertion loss | ≤0.5 dB |
| Rx frequency | 17.70 - 21.20 GHz |
| rx gain | 61.37 @ 19.0GHz |
| Rx VSWR | 1.35 : 1 |
| Tx feed insertion loss | ≤0.6 dB |
| Tx frequency | 27.50 - 31.00 GHz |
| tx gain | 65.04 @ 29.0+GHz |
| Tx VSWR | 1.35 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| power capacity | 5 KW |
| INTERFACE SPECIFICATIONS | |
| Rx interface | WR-42 |
| Tx interface | WR-28 |
| ENVIRONMENTAL SPECIFICATIONS | |
| humidity | 1.0 |
| ice load | Icing 13mm: normal work; Icing 25mm: no damage |
| seismic capacity horizontal | 0.3 G |
| seismic capacity vertical | 0.1 G |
| temperature operational | -30 - 50℃ |
| windspeed operational | 72 km/h |
| windspeed survival | 216 km/h |
| PHYSICAL SPECIFICATIONS | |
| loading capacity | 1 set for 40GP container |
| motion range AZ | ±85°(Truss type), 5° - 355° continuous (turntable type) |
| motion range EL | 5° - 90° |
| motion range POL | ±90° |
| product package volume | 7 packages, dimension: 36.15 CBM |
| RMS | ≤0.3 mm |
| structure | LMC/ FMC |
