Norsat International Inc.

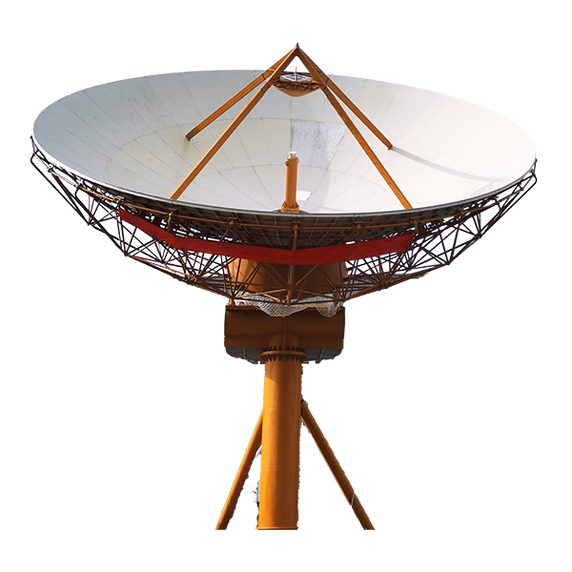

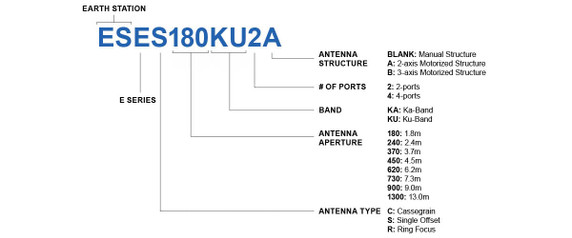

Norsat ESEC1300KA2A ANCHOR 13.0m Ka-Band Earth Station Antenna
We recommend purchasing the corresponding Antenna Control System along with the motorized Earth Station, unless you plan to develop the control system yourself. Please note that the Antenna Control System is sold separately at an additional cost.
For Manual Structure Antennas, a control system is not required.
Please note: Installation services are not included with this product.
| KEY SPECIFICATIONS | |
| Antenna Aperture | 13.0m |
| Band | Ka-Band |
| ANTENNA SPECIFICATIONS | |
| Antenna Drive Mode | 2-axis motorized structure |
| Antenna Type | Cassegrain |
| Number Of Ports | 2-ports |
| Polarization | Circular |
| Rx Axial Ratio 2 Ports | ≤1.5 dB |
| Sidelobe | ≤-14dB; 29 - 25 logθ(1°≤θ＜20°) |
| Tx Axial Ratio 2 Ports | ≤1.5 dB |
| RF SPECIFICATIONS | |
| Noise Temperature Elevation 10° | 129 K |
| Noise Temperature Elevation 20° | 90K |
| Noise Temperature Elevation 50° | 65K |
| Port Isolation Rx-Tx | ≥85 dB |
| Rx Feed Insertion Loss | ≤0.8dB |
| Rx Frequency | 17.70 - 21.20 GHz |
| Rx Gain | ≥66.03+20lg(f/19.0GHz) |
| Rx VSWR | 1.35 : 1 |
| Tx Feed Insertion Loss | ≤0.9dB |
| Tx Frequency | 27.50 - 31.00 GHz |
| Tx Gain | ≥69.70+20lg(f/29.0GHz) |
| Tx VSWR | 1.35 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Capacity | 2 KW |
| INTERFACE SPECIFICATIONS | |
| Rx Interface | FBP-220(WR-42) |
| Tx Interface | FBP-320(WR-28) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 1.0 |
| Temperature Operational | -30°C to +70°C |
| Windspeed Operational | 72 km/h |
| Windspeed Survival | 120km/h |
| PHYSICAL SPECIFICATIONS | |
| Motion Range AZ | 5° - 355° |
| Motion Range EL | 5° - 90° |
| Motion Range POL | ±90° |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 Kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in China |
| ECCN Number | 5A991.B |
| Ex Works | Hong Kong |
| Harmonized System Code | 8529109090 |
| Warranty | 1 year |
