Norsat International Inc.

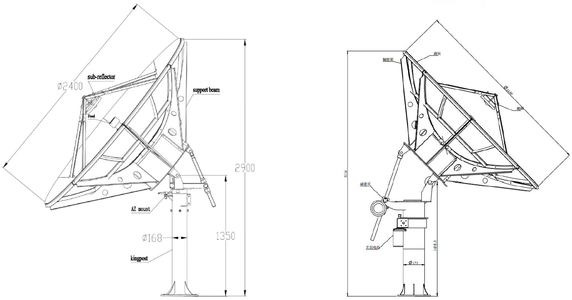

Norsat ES-100058 2.4m C-Band Earth Station Antenna
Product Code:
ES-100058
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$0.00
Please note: Installation services are not included with this product.
| KEY SPECIFICATIONS | |
| Antenna Aperture | 2.4m |
| Antenna Category | Earth Station |
| Band | C-Band |
| ANTENNA SPECIFICATIONS | |
| 90% Peaks Under Following Envelop | 29 - 25 logθ(1°≤θ＜20°) |
| Antenna Drive Mode | Manual Structure Antenna |
| Antenna Type | Ring Focus |
| Axial Ratio | Tx: 1.3 dB max. Rx: 1.3 dB max. |
| Cross Polarization Isolation | ≥30dB |
| Number Of Ports | 2 Ports |
| Polarization | Circular/Linear (Supports Polarization Switching Manually) |
| Sidelobe | ≤-14dB (First Sidelobe) |
| Structure | EL over AZ |
| RF SPECIFICATIONS | |
| Noise Temperature Elevation 10° | 50.7K |
| Noise Temperature Elevation 20° | 44.8K |
| Noise Temperature Elevation 40° | 40.6K |
| Port Isolation Rx-Tx | 85 dB |
| Power Handling | 2kW |
| Rx -3Db Beam Width | 2.3° |
| Rx Feed Insertion Loss | ≤0.2 dB |
| Rx Frequency | 3.625 - 4.2 GHz |
| Rx Gain | 37.71 dBi @ 3.95 GHz |
| Rx VSWR | 1.25 : 1 |
| Tx -3Db Beam Width | 1.41° |
| Tx Feed Insertion Loss | ≤0.2dB |
| Tx Frequency | 5.85 ‐ 6.425 GHz |
| Tx Gain | 41.98 dBi @ 6.2 GHz |
| Tx VSWR | 1.25 : 1 |
| INTERFACE SPECIFICATIONS | |
| Rx Interface | CPR-229G |
| Tx Interface | CPR-137G |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 100% |
| Ice Load | Icing 13mm: normal work Icing 25mm: no damage |
| Seismic Capacity | Horizontal: 0.3G Vertical: 0.1G |
| Temperature Operational | -30℃ to 50℃ |
| Windspeed Operational | 72km/h |
| Windspeed Survival | 216km/h |
| PHYSICAL SPECIFICATIONS | |
| Motion Range AZ | 0° - 360° |
| Motion Range EL | 5° - 90° |
| Motion Range POL | ±90° |
| Surface Accuracy RMS | ≤0.5 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | 5A001.B |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
