Norsat International Inc.

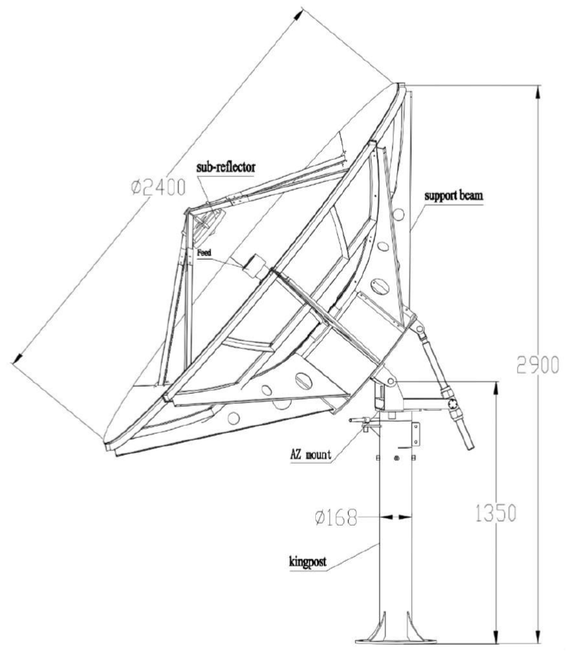

Norsat ES-100050 ANCHOR 2.4 m C-Band Earth Station Antenna
Product Code:
ES-100050
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
FEATURES
• Meets or exceeds CCIR 580 and Intelsat requirements
• Meets Intelsat, Asiasat, Chinasat network access Requirement
• The efficiency of single band communication antenna can reach to 70%
• High gain, Low sidelobe, High G/T rate
• Hot-dip zinc processed steel parts, with strong corrosion resistant ability
| KEY SPECIFICATIONS | |
| Antenna Aperture | 2.4m |
| Antenna Category | Earth Station |
| Band | C-Band |
| ANTENNA SPECIFICATIONS | |
| 90% Peaks Under Following Envelop | 29 - 25 logθ(1°≤θ<20°) |
| Antenna Drive Mode | Manual/Motorized |
| Antenna Type | Ring Focus/Center Feed |
| Axial Ratio | Tx: ≤1.3 dB Rx: ≤1.3 dB |
| Cross Polarization Isolation | ≥ 30 dB on axis |
| Number Of Ports | 2-ports |
| Polarization | Circular |
| Sidelobe | ≤-14dB (First Sidelobe) |
| RF SPECIFICATIONS | |
| -3Db Rx Beamwidth | 2.3° |
| -3Db Tx Beamwidth | 1.41° |
| Noise Temperature Elevation 10° | 50.7 K |
| Noise Temperature Elevation 20° | 44.8 K |
| Noise Temperature Elevation 40° | 40.6 K |
| Port Isolation Rx-Tx | 85 dB |
| Power Capacity | 2000 W |
| Rx Feed Insertion Loss | ≤0.2 dB |
| Rx Frequency | 3.40 - 4.20 GHz |
| Rx Gain | 37.73 @ 3.8GHz |
| Rx VSWR | 1.25 : 1 |
| Tx Feed Insertion Loss | ≤0.2 dB |
| Tx Frequency | 5.850 ‐ 6.725 GHz |
| Tx Gain | 41.98 @ 6.2GHz |
| Tx VSWR | 1.25 : 1 |
| INTERFACE SPECIFICATIONS | |
| Rx Interface | CPR-229G |
| Tx Interface | CPR-137G |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 100% |
| Ice Load | Icing 13mm: normal work; Icing 25mm: no damage |
| Seismic Capacity Horizontal | 0.3 G |
| Seismic Capacity Vertical | 0.1 G |
| Temperature Operational | -30°C to +50°C |
| Wind Load Operational | 72 km/h |
| Windspeed Operational | 72 km/h |
| Windspeed Survival | 216 km/h |
| PHYSICAL SPECIFICATIONS | |
| Loading Capacity | 8 sets for one 20ft container; 16 sets for one 40ft container |
| Motion Range AZ | 5° - 355°(continuous); |
| Motion Range EL | 5° - 90° |
| Motion Range POL | ±90° |
| Structure | EL over AZ |
| Surface Accuracy RMS | ≤0.5 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | 5A991.B |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517620000 |
| Warranty | 1 year |
