Norsat International Inc.
Norsat ELMTBKUG008-EF-E ELEMENT 8W Ku-Band GaN BUC
Product Code:
ELMTBKUG008-EF-E
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.75 KGS
Width:
8.00
(cm)
Height:
3.80
(cm)
Depth:
14.30
(cm)
$5,125.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Input Frequency Band 1 | 950 - 1700 MHz |
| LO Frequency 1 | 12.80 GHz |
| Output Frequency Band 1 | 13.75 - 14.50 GHz |
| Output Power Rated | 8W |
| RF SPECIFICATIONS | |
| Gain Flatness (54Mhz) | ≤ 1.5 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 4.0 dB p-p |
| Gain Flatness (Over Temperature) | ≤ 4.0 dB p-p |
| Input Power | via MS Connector |
| Input VSWR | 2.0 : 1 max. |
| Linear Gain Typ | 65 dB |
| Output Power Plinear | 37 dBm |
| Output Power Psat | 39 dBm |
| Output Spurious In Band | ≤ -60 dBc |
| Output Spurious Out Of Band | ≤ -50 dBc |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 0.1Khz Offset Max | -65 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | via MS Connector |
| M&C Function | Ethernet |
| Power Consumption | 45W max. |
| Power Requirements | +18 to +60V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| M AND C SPECIFICATIONS | |
| M And C Interface | Ethernet |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | Up to 100% / IP67 |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +55°C |
| Temperature Storage | -40 to +80°C |

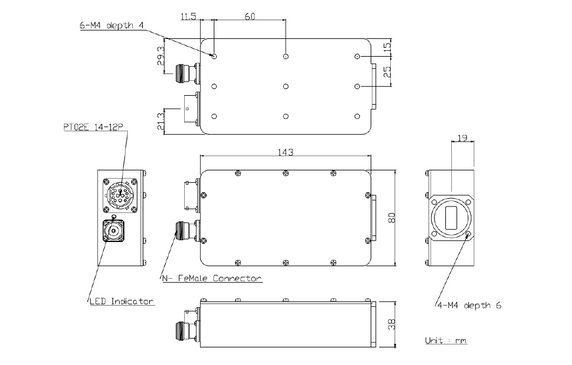

| PHYSICAL SPECIFICATIONS | |
| Enclosed Accessories | Screws, Gasket |
| Product Height | 38 mm |
| Product Length | 143 mm |
| Product Weight | 0.75 kg |
| Product Width | 80 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.53 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 1.325 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8543700000 |
| Unit Package Dimensions | 190 mm x 120 mm x 75 mm |
| Unit Package Height | 75 mm |
| Unit Package Length | 190 mm |
| Unit Package Width | 120 mm |
| Warranty | 3 years |
