Norsat International Inc.

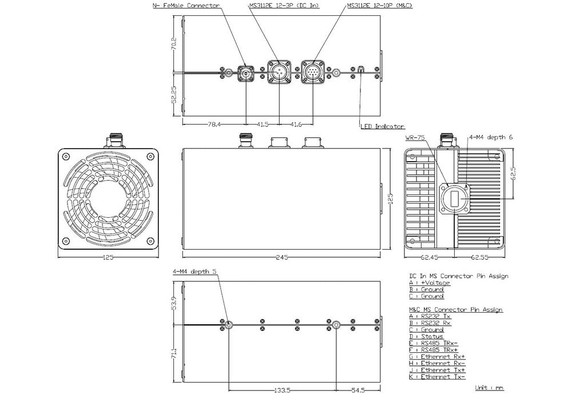

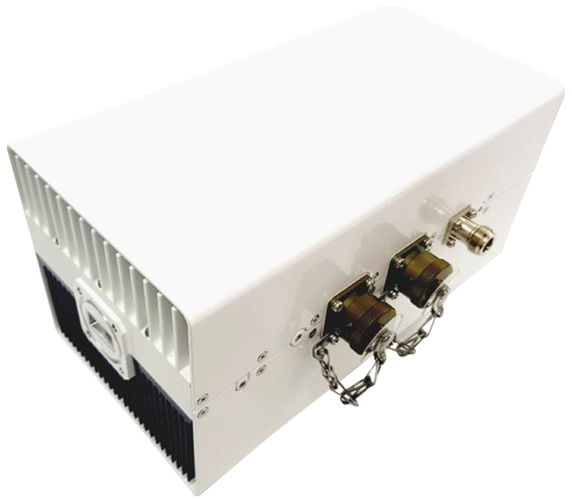

Norsat ELMTBKU050HT-EN-M ELEMENT 50W Ku-Band MINIBUC (High Temperature Range)
Product Code:
ELMTBKU050HT-EN-M
Condition:
New
Availability:
10 - 12 Weeks
Weight:
4.00 KGS
Width:
12.50
(cm)
Height:
12.50
(cm)
Depth:
24.50
(cm)
$36,470.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Input Frequency Band 1 | 950 - 1700 MHz |
| LO Frequency 1 | 12.80 GHz |
| Output Frequency Band 1 | 13.75 - 14.50 GHz |
| Output Power Rated | 50W |
| Reference Type | Internal Reference |
| RF SPECIFICATIONS | |
| Gain Flatness (54Mhz) | 1.5 dB |
| Gain Flatness (Over Full Band) | 4 dB |
| Gain Flatness (Over Temperature) | 4 dB |
| Input VSWR | 2 : 1 max. |
| Linear Gain Typ | 72 dB |
| Output P1db | +47 dBm typ. / +46 dBm min. over temperature |
| Output Spurious In Band | -60 dBc |
| Output Spurious Out Of Band | -50 dBc |
| Output VSWR | 2 : 1 max. |
| Phase Noise 0.1Khz Offset Max | -65 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 390W max. |
| Power Consumption | 390W max. |
| Power Requirements | +36 to +60V DC |
| INTERFACE SPECIFICATIONS | |
| Frequency Sense | Non-inverted |
| IF Connector | N-Connector |
| M AND C SPECIFICATIONS | |
| M And C Interface | RS-232 & RS-485 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | Up to 100% |
| IP Rating | IP 55 |
| Temperature Operational | -40°C to +55°C |
| Temperature Storage | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Internal Function | Lock detector shuts off Tx in case of LO unlocked |
| Product Height | 125 mm |
| Product Length | 245 mm |
| Product Weight | 4 kg |
| Product Width | 125 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 2.84 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 7.1 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8543700000 |
| Unit Package Dimensions | 290 mm x 270 mm x 250 mm |
| Unit Package Height | 250 mm |
| Unit Package Length | 290 mm |
| Unit Package Weight | 4.5 kg |
| Unit Package Width | 270 mm |
| Warranty | 3 years |
