Norsat International Inc.

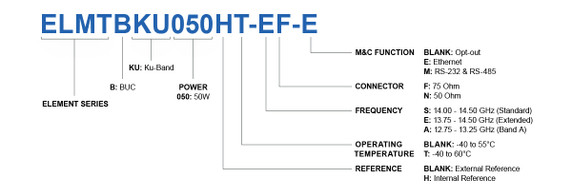

Norsat ELMTBKU050H-AF ELEMENT 50W Ku-Band MINIBUC - ELMTBKU050 Series

Name: Norsat ELMTBKU050H-AF ELEMENT 50W Ku-Band MINIBUC - ELMTBKU050 Series
Brand: Norsat International Inc.
Price: 39130 USD
Availability: InStock

No reviews yet

Condition: New

Weight: 4.00 KGS

Width: 24.50 (cm)

Height: 12.50 (cm)

Depth: 12.50 (cm)

Norsat ELEMENT 50W Ku-Band ELMTBKU050 Series Data Sheet

$39,130.00 - $40,170.00

Norsat ELEMENT 50W Ku-Band MINIBUC - ELMTBKU050 Series

KEY SPECIFICATIONS
band	Ku-Band
external ref freq	10 MHz, -5 to +5 dBm
input frequency band 1	950 - 1450 MHz
output frequency band 1	12.75 - 13.25 GHz
output power rated	50W
reference type	Internal
RF SPECIFICATIONS
Gain Flatness (over 54MHz)	1.5 dB
Gain Flatness (over full band)	4 dB
Gain Flatness (over temperature)	4 dB
input VSWR	2 : 1 max.
Linear Gain	72 dB typ.
output P1dB	+47 dBm typ. / +46 dBm min. over temperature
output spurious in band	-60 dBc
output spurious out of band	-50 dBc
output VSWR	2 : 1 max.
phase noise 100hz offset	-65 dBc/Hz
phase noise 100khz offset	-95 dBc/Hz
phase noise 10khz offset	-85 dBc/Hz
phase noise 1khz offset	-75 dBc/Hz
ELECTRICAL SPECIFICATIONS
current drain	390W max.
input voltage	36-60 VDC
INTERFACE SPECIFICATIONS
frequency sense	Non-inverted
RF input connector	F-Connector
ENVIRONMENTAL SPECIFICATIONS
humidity	Up to 100%
IP rating	IP55
temperature operational	-40 to +55°C
temperature storage	-40 to +60°C
PHYSICAL SPECIFICATIONS
internal function	Lock detector shuts off Tx in case of LO unlocked
product dimensions (LxWxH)	245 x 125 x 125 mm
product weight	4 kg
