Norsat International Inc.

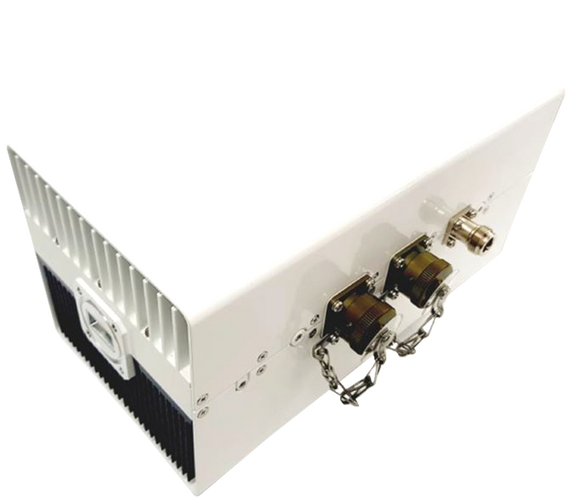

Norsat ELMTBKU040HT-AF-E ELEMENT 40W Ku-Band MINIBUC (High Temperature Range) - ELMTBKU040 Series

No reviews yet
Product Code: ELMTBKU040HT-AF-E
Condition: New
Weight: 4.00 KGS
Width: 24.50 (cm)
Height: 12.50 (cm)
Depth: 12.50 (cm)
Norsat ELEMENT 40W Ku-Band MINIBUC (High Temperature Range) - ELMTBKU040 Series Data Sheet
$22,950.00

ELEMENT 40W Ku-Band MINIBUC (High Temperature Range) ELMTBKU040 Series

KEY SPECIFICATIONS
band Ku-Band
external ref freq 10 MHz, -5 to +5 dBm
input frequency band 1 950 - 1450 MHz
output frequency band 1 12.75 - 13.25 GHz
output power rated 40W
reference type Internal
RF SPECIFICATIONS
Gain Flatness (over 54MHz) 1.5 dB
Gain Flatness (over full band) 4 dB
Gain Flatness (over temperature) 4 dB
input VSWR 2 : 1 max.
Linear Gain 72 dB typ.
output P1dB +46 dBm min. over temperature
output spurious in band -60 dBc
output spurious out of band -50 dBc
output VSWR 2 : 1 max.
phase noise 100hz offset -65 dBc/Hz
phase noise 100khz offset -95 dBc/Hz
phase noise 10khz offset -85 dBc/Hz
phase noise 1khz offset -75 dBc/Hz
ELECTRICAL SPECIFICATIONS
current drain 390W max.
input voltage 36-60 VDC
INTERFACE SPECIFICATIONS
frequency sense Non-inverted
RF input connector F-Connector
ENVIRONMENTAL SPECIFICATIONS
humidity Up to 100%
IP rating IP55
temperature operational -40 to +60°C
PHYSICAL SPECIFICATIONS
internal function Lock detector shuts off Tx in case of LO unlocked
product dimensions (LxWxH) 245 x 125 x 125 mm
product weight 4 kg
More details
5 customers are viewing this product
  • Norton Secured
  • TRUSTe Verified
  • Authorized.net
  • Accredited Business
  • Verified by Visa
  • Mastercard SecureCode

Write a Review

Norsat ELMTBKU040HT-AF-E ELEMENT 40W Ku-Band MINIBUC (High Temperature Range) - ELMTBKU040 Series

Norsat International Inc.

Norsat ELMTBKU040HT-AF-E ELEMENT 40W Ku-Band MINIBUC (High Temperature Range) - ELMTBKU040 Series


Details

ELEMENT 40W Ku-Band MINIBUC (High Temperature Range) ELMTBKU040 Series

KEY SPECIFICATIONS
band Ku-Band
external ref freq 10 MHz, -5 to +5 dBm
input frequency band 1 950 - 1450 MHz
output frequency band 1 12.75 - 13.25 GHz
output power rated 40W
reference type Internal
RF SPECIFICATIONS
Gain Flatness (over 54MHz) 1.5 dB
Gain Flatness (over full band) 4 dB
Gain Flatness (over temperature) 4 dB
input VSWR 2 : 1 max.
Linear Gain 72 dB typ.
output P1dB +46 dBm min. over temperature
output spurious in band -60 dBc
output spurious out of band -50 dBc
output VSWR 2 : 1 max.
phase noise 100hz offset -65 dBc/Hz
phase noise 100khz offset -95 dBc/Hz
phase noise 10khz offset -85 dBc/Hz
phase noise 1khz offset -75 dBc/Hz
ELECTRICAL SPECIFICATIONS
current drain 390W max.
input voltage 36-60 VDC
INTERFACE SPECIFICATIONS
frequency sense Non-inverted
RF input connector F-Connector
ENVIRONMENTAL SPECIFICATIONS
humidity Up to 100%
IP rating IP55
temperature operational -40 to +60°C
PHYSICAL SPECIFICATIONS
internal function Lock detector shuts off Tx in case of LO unlocked
product dimensions (LxWxH) 245 x 125 x 125 mm
product weight 4 kg
