Norsat International Inc.
Norsat ELMTBKU025-DF-IFL ELEMENT 25W Ku-Band MINIBUC
Product Code:
ELMTBKU025-DF-IFL
Weight:
2.37 KGS
Width:
12.00
(cm)
Height:
17.00
(cm)
Depth:
11.00
(cm)
$15,175.00

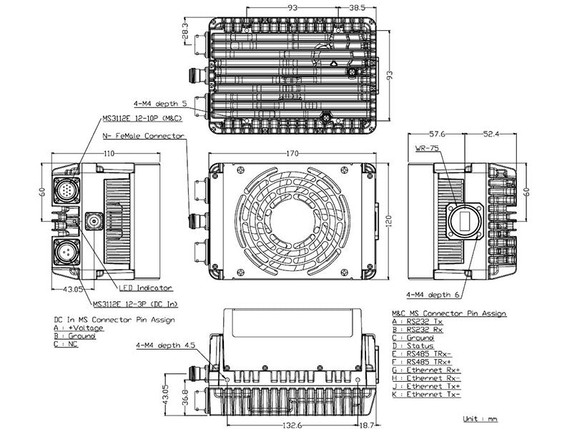

| KEY SPECIFICATIONS | |
| band | Ku-Band |
| external ref freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| input frequency band 1 | 950 - 1450 MHz |
| LO frequency 1 | 13.05 GHz |
| output frequency band 1 | 14.00 - 14.50 GHz |
| output power rated | 25W |
| Product Revision | A |
| RF SPECIFICATIONS | |
| Gain Flatness (over any 40MHz) | ≤ 1.5 dB p-p |
| Gain Flatness (over full band) | 4 dB |
| Gain Flatness (over temperature) | 4 dB |
| input VSWR | 2.0 : 1 max. |
| linear gain max | 75 dB |
| linear gain min | 65 dB |
| linear gain typ | 70 dB |
| output P1dB | 44 dBm min. |
| output power psat | 44.5 dBm min. |
| output spurious in band | ≤ -60 dBc |
| output spurious out of band | ≤ -50 dBc |
| output VSWR | 2.0 : 1 max. |
| phase noise 100Hz offset max | -65 dBc/Hz |
| phase noise 100kHz offset max | -95 dBc/Hz |
| phase noise 10kHz offset max | -85 dBc/Hz |
| phase noise 1kHz offset max | -75 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| input power | via IFL |
| power consumption | 200W max. |
| power requirements | +36 to +60V DC |
| INTERFACE SPECIFICATIONS | |
| IF connector | F-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| humidity | 0-100% condensing |
| IP rating | IP 54 |
| temperature operational | -40°C to +55°C |
| PHYSICAL SPECIFICATIONS | |
| enclosed accessories | Screws, Gasket |
| product height | 110 mm |
| product length | 170 mm |
| product weight | 2.37 kg |
| product width | 120 mm |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| band | Ku-Band |
| external ref freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| input frequency band 1 | 950 - 1450 MHz |
| LO frequency 1 | 13.05 GHz |
| output frequency band 1 | 14.00 - 14.50 GHz |
| output power rated | 25W |
| Product Revision | A |
| RF SPECIFICATIONS | |
| Gain Flatness (over any 40MHz) | ≤ 1.5 dB p-p |
| Gain Flatness (over full band) | 4 dB |
| Gain Flatness (over temperature) | 4 dB |
| input VSWR | 2.0 : 1 max. |
| linear gain max | 75 dB |
| linear gain min | 65 dB |
| linear gain typ | 70 dB |
| output P1dB | 44 dBm min. |
| output power psat | 44.5 dBm min. |
| output spurious in band | ≤ -60 dBc |
| output spurious out of band | ≤ -50 dBc |
| output VSWR | 2.0 : 1 max. |
| phase noise 100Hz offset max | -65 dBc/Hz |
| phase noise 100kHz offset max | -95 dBc/Hz |
| phase noise 10kHz offset max | -85 dBc/Hz |
| phase noise 1kHz offset max | -75 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| input power | via IFL |
| power consumption | 200W max. |
| power requirements | +36 to +60V DC |
| INTERFACE SPECIFICATIONS | |
| IF connector | F-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| humidity | 0-100% condensing |
| IP rating | IP 54 |
| temperature operational | -40°C to +55°C |
| PHYSICAL SPECIFICATIONS | |
| enclosed accessories | Screws, Gasket |
| product height | 110 mm |
| product length | 170 mm |
| product weight | 2.37 kg |
| product width | 120 mm |
