Norsat International Inc.
Norsat ELMTBKU016T-AF ELEMENT 16W Ku-Band MINIBUC (High Temperature Range)
Product Code:

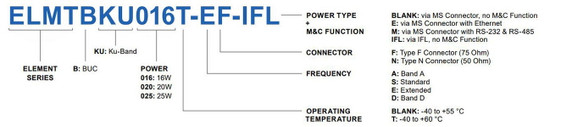

ELMTBKU016T-AF
Condition:
New
Availability:
10 - 12 Weeks
Weight:
2.37 KGS
Width:
12.00
(cm)
Height:
11.00
(cm)
Depth:
17.00
(cm)
$15,600.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 950 - 1450 MHz |
| LO Frequency 1 | 11.80 GHz |
| Output Frequency Band 1 | 12.75 - 13.25 GHz |
| Output Power Rated | 16W |
| RF SPECIFICATIONS | |
| Gain Flatness (40Mhz) | ≤ 1.5 dB p-p |
| Gain Flatness (Over Full Band) | 4 dB |
| Gain Flatness (Over Temperature) | 4 dB |
| Input VSWR | 2.0 : 1 max. |
| Linear Gain Typ | 68 dB |
| Output P1db | 42 dBm min. |
| Output Power Psat | 42.5 dBm min. |
| Output Spurious In Band | ≤ -60 dBc |
| Output Spurious Out Of Band | ≤ -50 dBc |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 0.1Khz Offset Max | -65 dBc/Hz |
| Phase Noise 1Khz Offset Max | -75 dBc/Hz |
| Phase Noise 10Khz Offset Max | -85 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | via MS Connector |
| Power Consumption | 185W max. |
| Power Requirements | +36 to +60V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0-100% condensing |
| IP Rating | IP 54 |
| Temperature Operational | -40°C to +60°C |

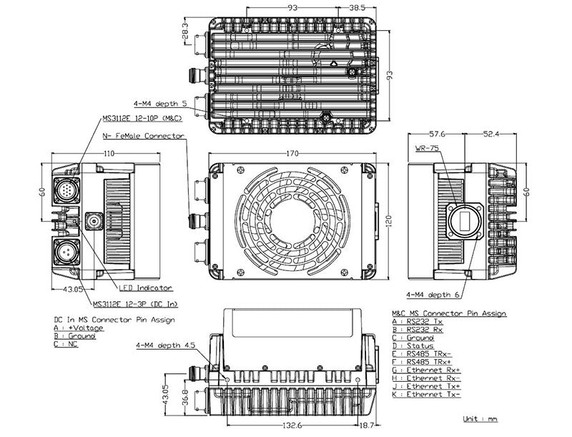

| PHYSICAL SPECIFICATIONS | |
| Enclosed Accessories | Screws, Gasket |
| Product Height | 110 mm |
| Product Length | 170 mm |
| Product Weight | 2.37 kg |
| Product Width | 120 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 1.68 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 4.2 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8543700000 |
| Unit Package Dimensions | 270 mm x 225 mm x 160 mm |
| Unit Package Height | 160 mm |
| Unit Package Length | 270 mm |
| Unit Package Weight | 3.8 kg |
| Unit Package Width | 225 mm |
| Warranty | 3 years |
