Norsat International Inc.

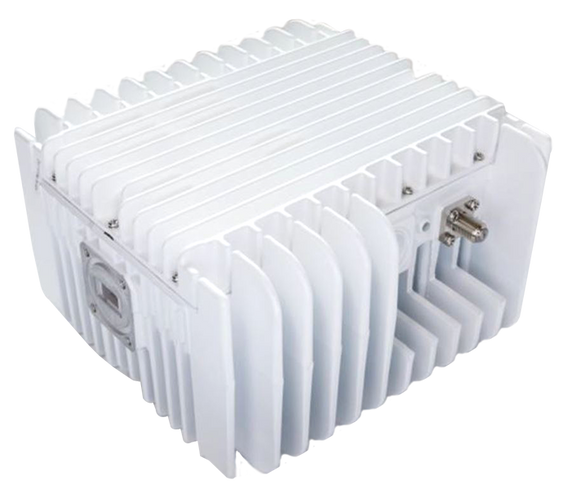

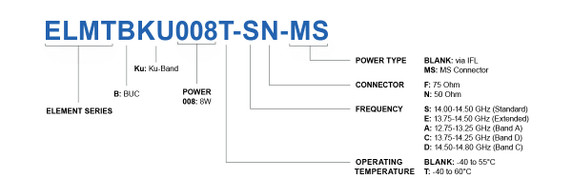

Norsat ELMTBKU008T-CF-MS ELEMENT 8W Ku-Band MINIBUC (High Temperature Range)
Product Code:
ELMTBKU008T-CF-MS
Condition:
New
Availability:
10 - 12 Weeks
Weight:
2.70 KGS
Width:
16.90
(cm)
Height:
10.10
(cm)
Depth:
17.59
(cm)
$4,706.17
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 950 - 1450 MHz |
| LO Frequency 1 | 12.80 GHz |
| Output Frequency Band 1 | 13.75 - 14.25 GHz |
| Output Power Rated | 8W |
| RF SPECIFICATIONS | |
| Gain Flatness (40Mhz) | ≤ 1.5 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Gain Flatness (Over Temperature) | ≤ 4 dB p-p |
| Input VSWR | 2.0 : 1 max. |
| Linear Gain Max | 70 dB |
| Linear Gain Min | 60 dB |
| Linear Gain Typ | 65 dB |
| Output P1db | 39 dBm min. |
| Output Psat | 39.5 dBm min. |
| Output Spurious In Band | ≤ -60 dBc |
| Output Spurious Out Of Band | ≤ -50 dBc |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 0.1Khz Offset Max | -60 dBc/Hz |
| Phase Noise 1Khz Offset Max | -70 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| Phase Noise 100Khz Offset Max | -90 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | via MS Connector |
| Power Consumption | 75W max. |
| Power Requirements | +18 to +60V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| Output Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0-100% condensing |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Enclosed Accessories | Screws, Gasket |
| Product Height | 101 mm |
| Product Length | 175.9 mm |
| Product Weight | 2.7 kg |
| Product Width | 169 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 1.91 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 4.775 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8543700000 |
| Unit Package Dimensions | 270 mm x 225 mm x 160 mm |
| Unit Package Height | 160 mm |
| Unit Package Length | 270 mm |
| Unit Package Weight | 4 kg |
| Unit Package Width | 225 mm |
| Warranty | 3 years |
