Norsat International Inc.

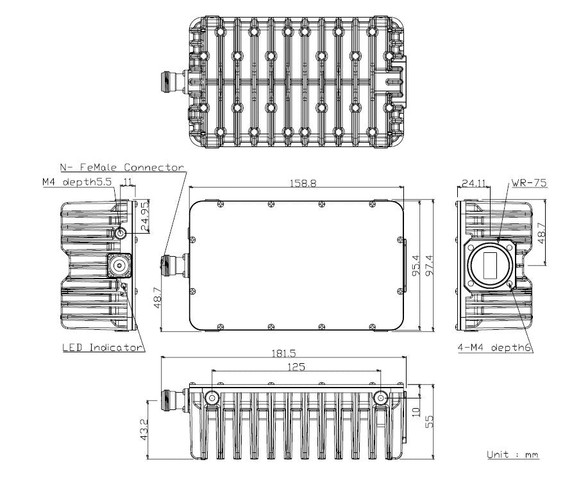

Norsat ELMTBKU006-CN 6W Ku-Band BUC
Product Code:
ELMTBKU006-CN
Availability:
Please Contact Us At Contact@Orbitalconnect.Com Or 888.315.9545
Weight:
2.70 KGS
Width:
16.90
(cm)
Height:
10.10
(cm)
Depth:
17.59
(cm)
$1,580.25
| Key Specification | Value |
| Band | Ku-Band |
| Band Type | C: Band C |
| Connector | F-Connector |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 950-1450 MHz |
| LO Frequency 1 | 12.80 GHz |
| Output Power Rated | 6W |
| Gain Flatness (Over 40MHz) | ≤1.5 dB p-p |
| Gain Flatness (Over Full Band) | ≤4 dB p-p |
| Gain Flatness (Over Temperature) | ≤4.0 p-p |
| Input VSWR | 2.0: 1 max |
| Linear Gain | 60 dB typ., 55 dB min., 65 dB max |
| Output P1dB | 37.8 dBm min |
| Output Power Psat | 38.3 dBm min |
| Output Spurious In Band | ≤-60 dBc |
| Output Spurious Out Of Band P1dB | ≤-50 dBc |
| Phase Noise 100hz Offset | -65 dBc/Hz |
| Reference Signal Frequency | ±51 dBm @ 10 MHz |
| Spurious | ≤-60 dBc (in band); ≤-50 dBc (out of band) |
| Input Voltage | +15V to + 30V DC |
| Power Consumption | 48W max |
| RF Input Connector | N: Type N Connector (50 Ohm) |
| RF Output Connector | WR75G |
| Humidity | 0-100% condensing |
| Temperature Operational | -40 to +55°C |
| Enclosed Accessories | Screws, Gasket |
| Product Dimensions (LxWxH) | 158.8×97.4×55 mm |
| Product Weight | 980 g (2.16 lb) |
5 customers are viewing this product
Details
| Key Specification | Value |
| Band | Ku-Band |
| Band Type | C: Band C |
| Connector | F-Connector |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 950-1450 MHz |
| LO Frequency 1 | 12.80 GHz |
| Output Power Rated | 6W |
| Gain Flatness (Over 40MHz) | ≤1.5 dB p-p |
| Gain Flatness (Over Full Band) | ≤4 dB p-p |
| Gain Flatness (Over Temperature) | ≤4.0 p-p |
| Input VSWR | 2.0: 1 max |
| Linear Gain | 60 dB typ., 55 dB min., 65 dB max |
| Output P1dB | 37.8 dBm min |
| Output Power Psat | 38.3 dBm min |
| Output Spurious In Band | ≤-60 dBc |
| Output Spurious Out Of Band P1dB | ≤-50 dBc |
| Phase Noise 100hz Offset | -65 dBc/Hz |
| Reference Signal Frequency | ±51 dBm @ 10 MHz |
| Spurious | ≤-60 dBc (in band); ≤-50 dBc (out of band) |
| Input Voltage | +15V to + 30V DC |
| Power Consumption | 48W max |
| RF Input Connector | N: Type N Connector (50 Ohm) |
| RF Output Connector | WR75G |
| Humidity | 0-100% condensing |
| Temperature Operational | -40 to +55°C |
| Enclosed Accessories | Screws, Gasket |
| Product Dimensions (LxWxH) | 158.8×97.4×55 mm |
| Product Weight | 980 g (2.16 lb) |
Download
| Download Name | |
| Norsat ELMTBKU006-EF 8W Ku-Band BUC Data Sheet | |
