Norsat International Inc.

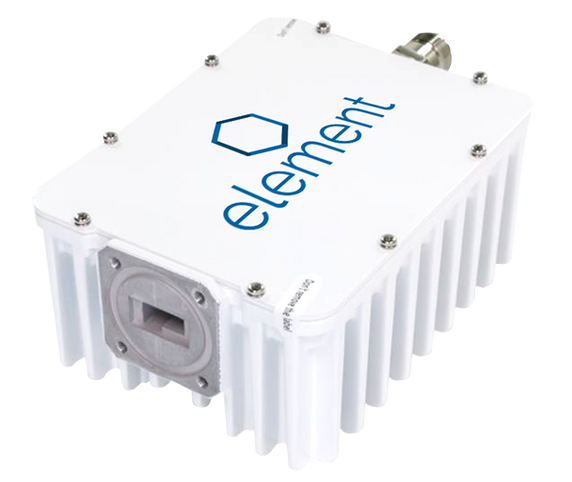

Norsat ELMTBKU004-EN ELEMENT 4W Ku-Band MINIBUC
Product Code:
ELMTBKU004-EN
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.70 KGS
Width:
9.51
(cm)
Height:
5.83
(cm)
Depth:
12.48
(cm)
$1,209.88
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 950 - 1700 MHz |
| LO Frequency 1 | 12.80 GHz |
| Output Frequency Band 1 | 13.75 - 14.50 GHz |
| Output Power Rated | 4W |
| RF SPECIFICATIONS | |
| Gain Flatness (36Mhz) | ≤ 1.5 dB p-p |
| Gain Flatness (Over Full Band) | 4 dB |
| Gain Flatness (Over Temperature) | 4 dB |
| Input VSWR | 2.0 : 1 max. |
| Linear Gain Typ | 58 dB |
| Output P1db | 36 dBm min. |
| Output Power Psat | 36.5 dBm min. |
| Output Spurious In Band | ≤ -60 dBc |
| Output Spurious Out Of Band | ≤ -50 dBc |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 0.1Khz Offset Max | -65 dBc/Hz |
| Phase Noise 1Khz Offset Max | -75 dBc/Hz |
| Phase Noise 10Khz Offset Max | -85 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | via IFL |
| Maximum Current 15 VDC | 2.3A |
| Power Consumption | 35W max. |
| Power Requirements | +15 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0-100% condensing |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +55°C |
| PHYSICAL SPECIFICATIONS | |
| Enclosed Accessories | Screws, Gasket |
| Product Height | 58.3 mm |
| Product Length | 124.8 mm |
| Product Weight | 0.7 kg |
| Product Width | 95.1 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.5 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 1.25 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8543700000 |
| Unit Package Weight | 1.6 kg |
| Warranty | 3 years |
