Norsat International Inc.

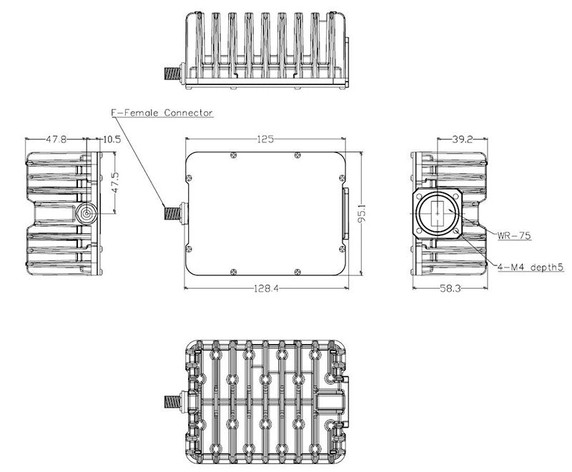

Norsat ELMTBKU003T-SF ELEMENT 3W Ku-Band MINIBUC
Product Code:
ELMTBKU003T-SF
Weight:
0.70 KGS
Width:
12.48
(cm)
Height:
5.83
(cm)
Depth:
9.51
(cm)
$669.14
|
KEY SPECIFICATIONS |
|
| band | Ku-Band |
| band type | S: Standard |
| external ref freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| input frequency band 1 | 950 - 1450 MHz |
| LO frequency 1 | 13.05 GHz |
| output frequency band 1 | 14.00 - 14.50 GHz |
| output power rated | 3W |
| Product Revision | A |
|
RF SPECIFICATIONS |
|
| Gain Flatness (over 54MHz) | ≤ 1.5 dB p-p |
| Gain Flatness (over full band) | ≤ 4 dB p-p |
| Gain Flatness (over temperature) | ≤ 4.0 dB p-p |
| input VSWR | 2.0 : 1 max. |
| linear gain max | 60 dB |
| linear gain min | 50 dB |
| linear gain typ | 55 dB |
| output P1dB | 34 dBm min. |
| output power psat | 34.5 dBm min. |
| output spurious in band | ≤ -60 dBc |
| output spurious out of band | ≤ -50 dBc |
| output VSWR | 2.0 : 1 max. |
| phase noise 100Hz offset max | -60 dBc/Hz |
| phase noise 100kHz offset max | -90 dBc/Hz |
| phase noise 10kHz offset max | -80 dBc/Hz |
| phase noise 1kHz offset max | -70 dBc/Hz |
|
ELECTRICAL SPECIFICATIONS |
|
| maximum current 15 VDC | 1.3A |
| power consumption | 20W max. |
| power requirements | +15 to +24V DC |
|
INTERFACE SPECIFICATIONS |
|
| IF connector | F-Connector |
| RF output connector | WR75G |
|
ENVIRONMENTAL SPECIFICATIONS |
|
| humidity | 0 - 100% condensing |
| IP rating | IP 67 |
| temperature operational | -40 to +60°C |
| temperature storage | -40 to +80°C |
|
PHYSICAL SPECIFICATIONS |
|
| enclosed accessories | Screws, Gasket |
| product dimensions (LxWxH) | 124.8 x 95.1 x 58.3 mm |
| product weight | 0.7 kg |
5 customers are viewing this product
Details
|
KEY SPECIFICATIONS |
|
| band | Ku-Band |
| band type | S: Standard |
| external ref freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| input frequency band 1 | 950 - 1450 MHz |
| LO frequency 1 | 13.05 GHz |
| output frequency band 1 | 14.00 - 14.50 GHz |
| output power rated | 3W |
| Product Revision | A |
|
RF SPECIFICATIONS |
|
| Gain Flatness (over 54MHz) | ≤ 1.5 dB p-p |
| Gain Flatness (over full band) | ≤ 4 dB p-p |
| Gain Flatness (over temperature) | ≤ 4.0 dB p-p |
| input VSWR | 2.0 : 1 max. |
| linear gain max | 60 dB |
| linear gain min | 50 dB |
| linear gain typ | 55 dB |
| output P1dB | 34 dBm min. |
| output power psat | 34.5 dBm min. |
| output spurious in band | ≤ -60 dBc |
| output spurious out of band | ≤ -50 dBc |
| output VSWR | 2.0 : 1 max. |
| phase noise 100Hz offset max | -60 dBc/Hz |
| phase noise 100kHz offset max | -90 dBc/Hz |
| phase noise 10kHz offset max | -80 dBc/Hz |
| phase noise 1kHz offset max | -70 dBc/Hz |
|
ELECTRICAL SPECIFICATIONS |
|
| maximum current 15 VDC | 1.3A |
| power consumption | 20W max. |
| power requirements | +15 to +24V DC |
|
INTERFACE SPECIFICATIONS |
|
| IF connector | F-Connector |
| RF output connector | WR75G |
|
ENVIRONMENTAL SPECIFICATIONS |
|
| humidity | 0 - 100% condensing |
| IP rating | IP 67 |
| temperature operational | -40 to +60°C |
| temperature storage | -40 to +80°C |
|
PHYSICAL SPECIFICATIONS |
|
| enclosed accessories | Screws, Gasket |
| product dimensions (LxWxH) | 124.8 x 95.1 x 58.3 mm |
| product weight | 0.7 kg |
